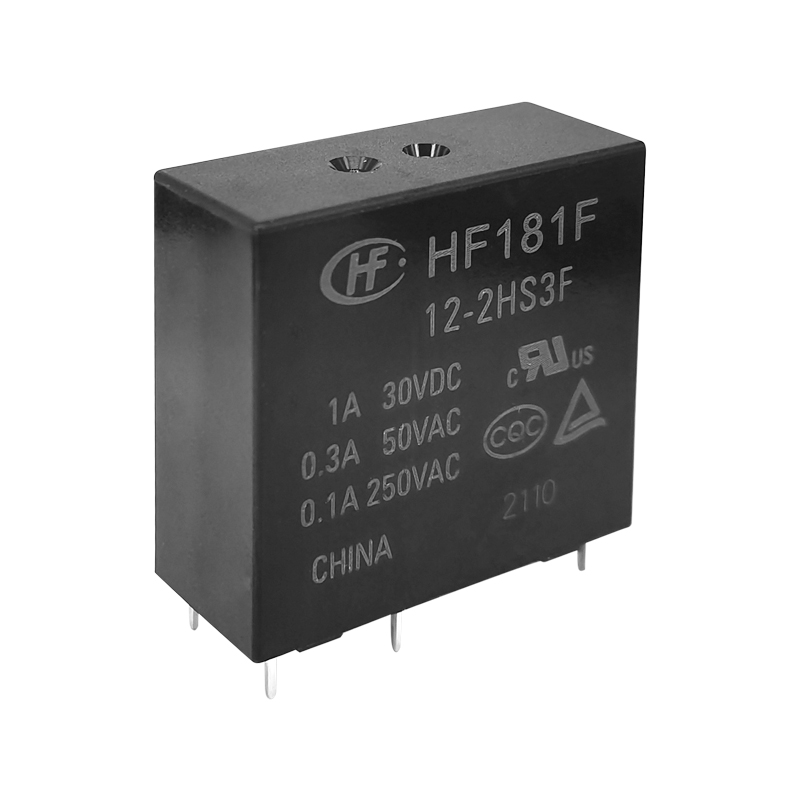

HF181F
MINIATURE HIGH POWER RELAY
Features
● 2 form A configurations
● 6.5 mm contact gap
● Withstand 10kV impulse voltage between contacts,
contact groups and coil-contact
● 5KV dielectric between open contacts
● Class F insulation
● Outline Dimensions：32.6mmx14 mmx30.5 mm
Certifications
E133481
R50433434
CQC19002215718
PACKING LIST
| Type | Packing Method | Min. QTY of Package | Tube Size (L x W x H cm) |
Carton Size (L x W x H cm) |
Approx.Unit weight (g) | QTY/CTN (PCS) | Approx.N.W. (kg) | Approx.G.W. (kg) | Stacking Layers Limit (n) |
| HF181F | Tray | 50 pcs/tray | - | 40 x 27 x 17.5 | - | 400 | 8.3 | 9.9 | 7 |
Notes：
1. Only one example of several typical packaging specifications for each product class is listed for reference.
2. The actual weight of the package varies with the ambient temperature and humidity. The specific batch weight can be obtained by contacting your exclusive business personnel.
3. During the turnover process, handle with care and avoid rough handling. In order to maintain the performance of the relay, please be careful not to drop the packages or subject them to strong impacts. If the outer box is damaged or deformed, please open the box for inspection. If the goods are damaged, please reject them.
4. When it comes to secondary delivery and transportation, palletized containerization should be used for delivery and transportation. Even if there is only one box of goods, the palletized containerization packaging method should be given priority for delivery. If it is necessary to use the single-box delivery method, reinforced packaging should be carried out, that is, an additional carton should be put outside the packaging box and corresponding cushioning materials should be used for reinforcement and protection. For the operation method of reinforced packaging and the required packaging materials, you can contact your exclusive business personnel to obtain them.
