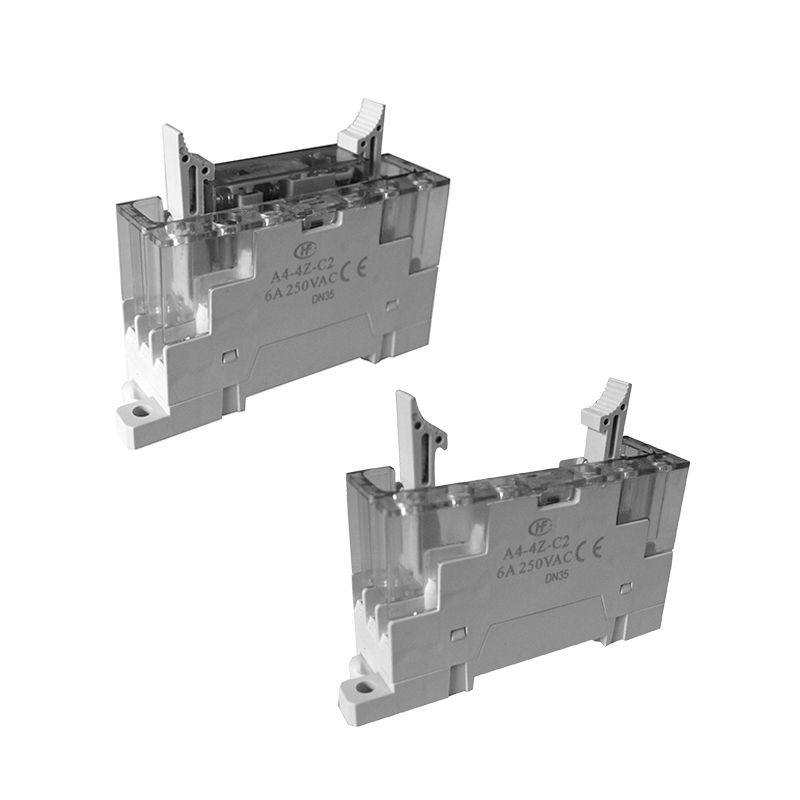

A4 Series Gasket screw Relay Socket
A4 Series Relay Socket
Features
Ambient temperature : -25℃ ~ 55℃
RatedAe: 250VAC
Rated Current : 6A
Input voltage: 6 ~ 110VDC
Dielectric strength : Between coil & contacts 4000VAC
Terminal torque: 1.0Nm
Wire strip length : 7mm
Max wire size : mm2 2x1.5
AWG 2x16
Applicable relay type : HFA4
Unit weight: Approx.49g
