RF Coaxial Connector

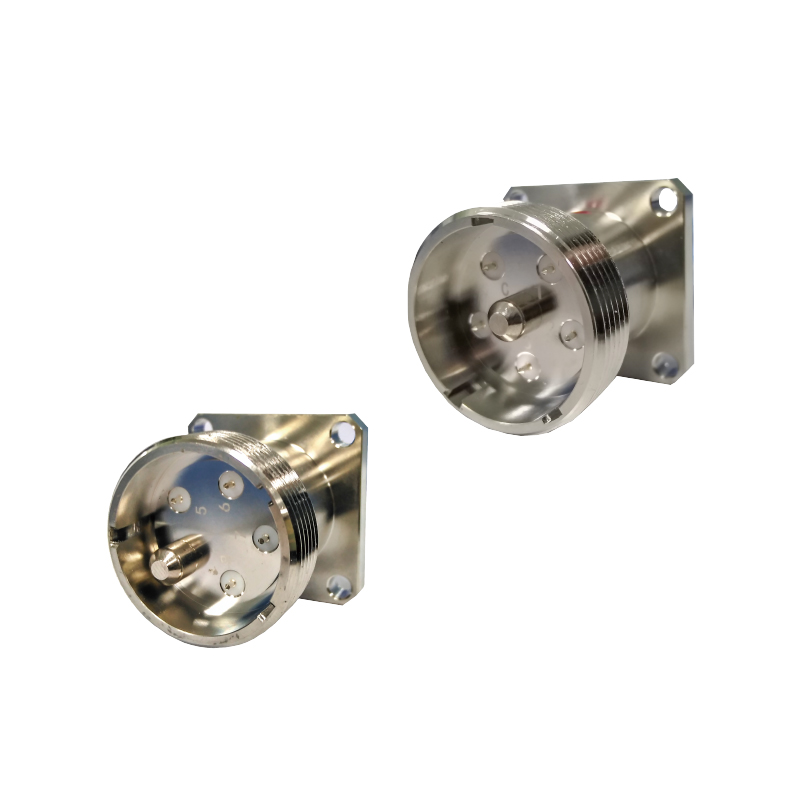

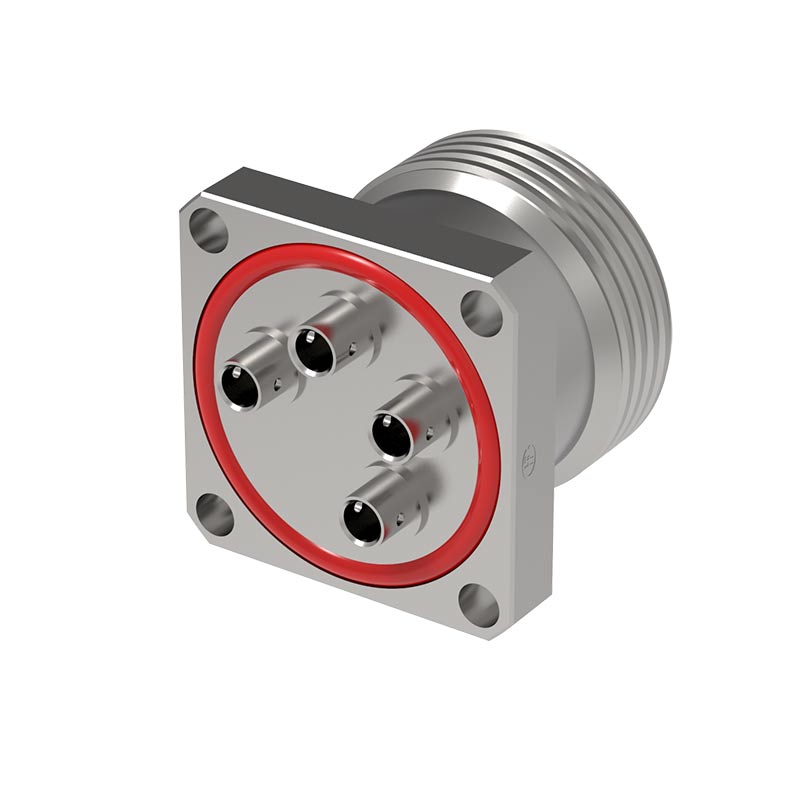

● The L32 bundle connector is an interface connection solution proposed to meet the large-scale application of the TD-LTE system
● 4-channel and 5-channel bundle assembly, It has good phase consistency and can reduce the number of joints and feeders by 80%. Its anti misinsertion structure can greatly improve construction efficiency
● Suitable for installation at the lower port of the bundle antenna, matching with the bundle jumpers of 4 and 5 channels
Type | Packing Method | Min. QTY of Package | Tube Size (L x W x H cm) |
Carton Size (L x W x H cm) |
Approx.Unit weight (g) | QTY/CTN (PCS) | Approx.N.W. (kg) | Approx.G.W. (kg) | Stacking Layers Limit (n) |
HFLX1-L32-4-JFB3-5 | — | 18pcs/reel | 38×24×5.8 | 39.5×25.5×26.5 | 87.17 | 157 | 13.685690000000001 | 14.745690000000002 | — |
