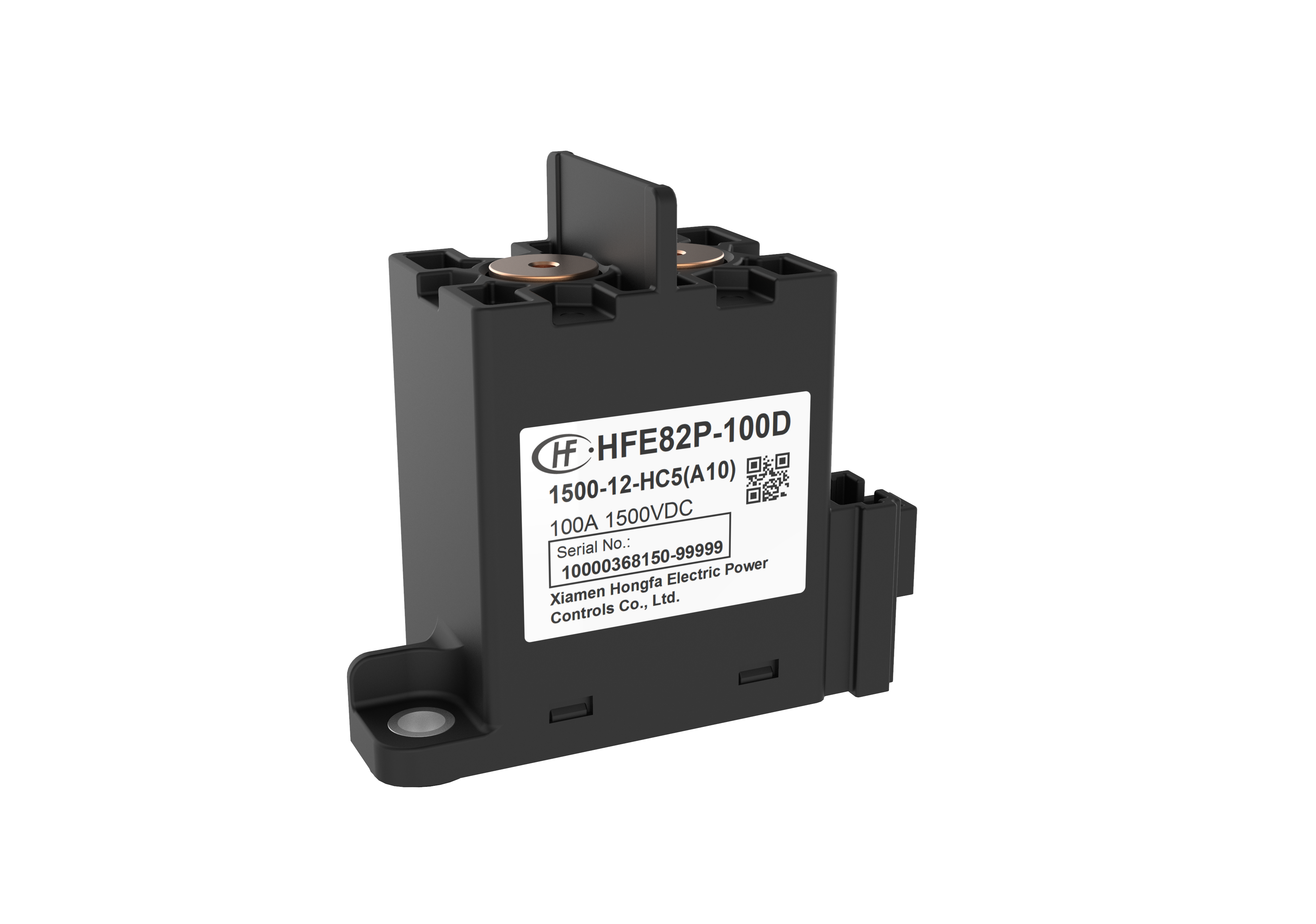

HFE82P-100D(A10)

DIRECT CURRENT RELAY

Features

● Hermetically sealed with ceramic brazing technology, without risk of arc leaking, no fire or explosion.● Filled with hydrogen gas to prevent oxidation and burn out of contacts;Low and stable contact resistance, contact block with IP67 compliant.● 100A continuous carry current capability at 85ºC.● Meet the requirements for handling abnormal operating conditions and can switch under 10-times overcurrent.● Max. insulation resistance up to 1000MΩ (1500 VDC), dielectric strength (betweencontact and coil) up to 4kV, IEC60664-1 compliant.● Loads have polarity requirements, while coil drives are non-polaried.● Applied to the energy storage, safety conformity of ≤1500V.
