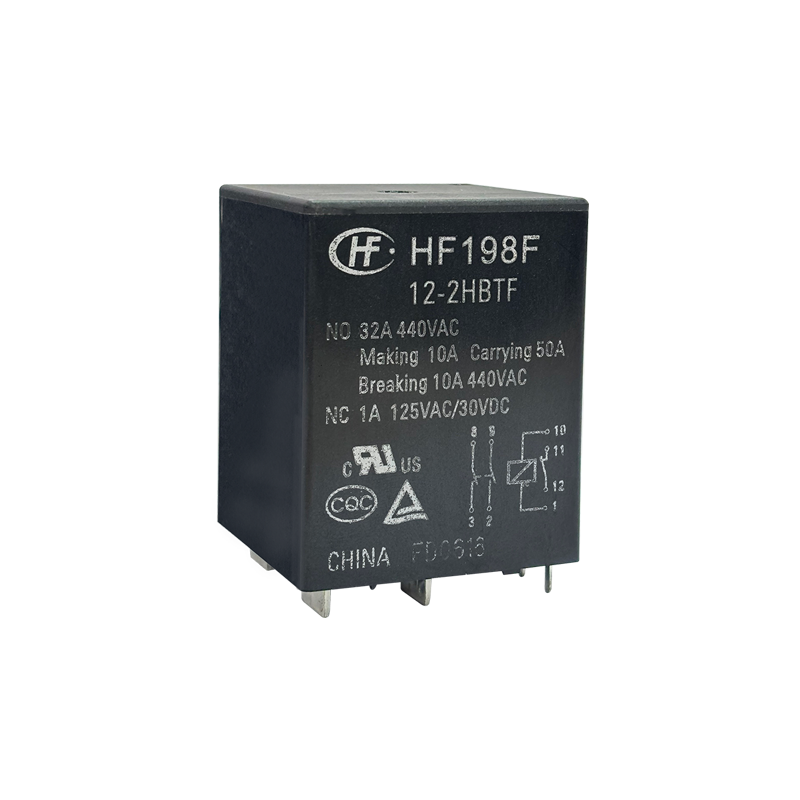

HF198F
MINIATURE HIGH POWER RELAY
Features
● 2 Main contacts +1 Auxiliary contact
● Detection of main contact welding makes it possible to construct a safety circuit(according to IEC 61810-3)
● Meet the requirements for auxiliary contact linked with Npower contact (mirror contact)(according to IEC 60947-4-1)
● Contact gap: 3.6 mm (Main contact),each contact
● Contact category :CC2
● Low coil holding voltage contributes to save energy
● Fully compliant to the 10kA short circuit current test and 500A switching of IEC 62955
Certifications
E133481
R 50576276
CQC23002375878
