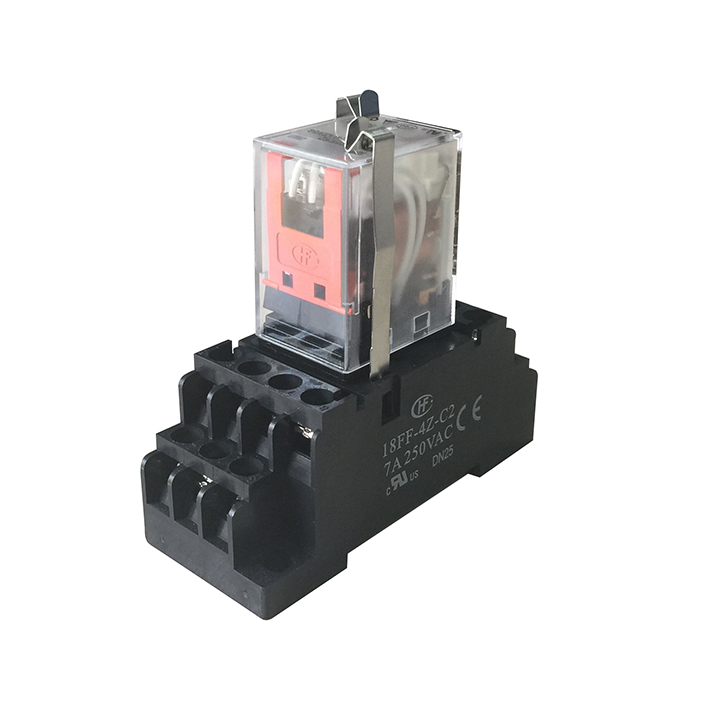

18FZ Relay Socket
Ambient temperature :-40℃ ~ 70℃
Rated Voltage: 250VAC
Rated Current: 5A (Each pole)
Dielectric strength: 2000VAC min.(Between I/O)
Retainer: 18FF-H2 Applicable for HF18FZ/□□□□□□1□、
HF18FZ/□□□□□□2□、HF18FF(without
button)relay
18FZ-H1 Applicable for HF18FZ/□□□□□□3□
(with button)relay
Marker: Nil
Plug-in modules: Nil
Terminal torque: 0.6Nm
Wire strip length: 7mm
Max wire size: 2x1.5mm2
Type | Packing Method | Min. QTY of Package | Tube Size (L x W x H cm) |
Carton Size (L x W x H cm) |
Approx.Unit weight (g) | QTY/CTN (PCS) | Approx.N.W. (kg) | Approx.G.W. (kg) | Stacking Layers Limit (n) |
18FZ-4Z-C2 | Carton packaging | 5 pcs / box | - | 335×275×200 | 45.5 | 150 | 6.825 | 10.0005 | 6 |
