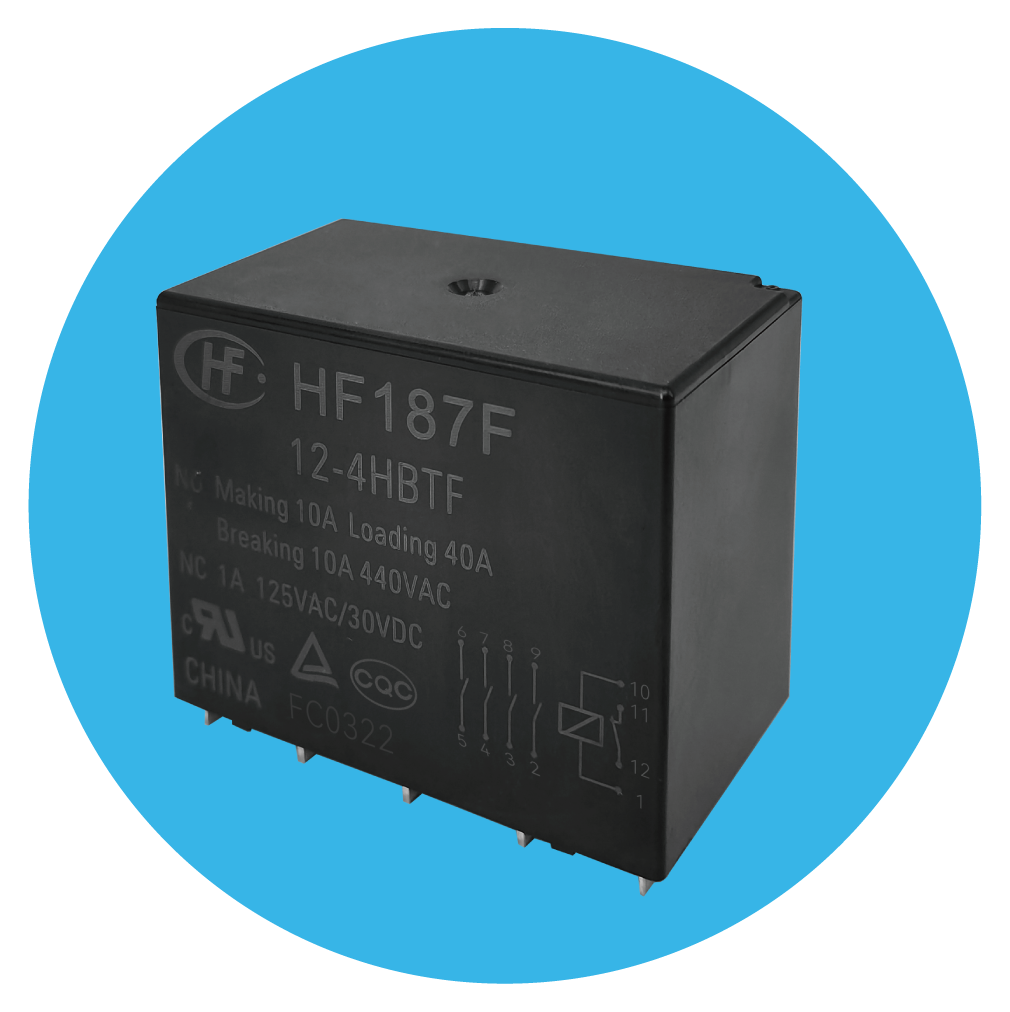

HF187F(955)

HF187F(955)

HIGH POWER RELAY 40A

Special version fully compliant to the short circuit current test of IEC 62955 available

Get in touch with us now!

CHARACTERISTICS

HF187F

Contact arrangement

Main contact 4 Form A+Auxiliary contact 1 Form B
HF187F

Contact rating

Main contact 40A / 440VAC,Auxiliary contact:1A / 277VAC
HF187F

Contact gap

Main contact≥3.9mm,Auxiliary contact≥0.5mm (When the main contacts are welded)
HF187F

Short circuit current rating

3kA short-circuit current test, and 500A current breaking test special version is avaiable: HF187F (955)
Mechanical linked contacts (mirror contact) meet IEC 61810-3 and IEC 60947-4-1.
HF187F (955) Fully compliant to the short circuit current test of IEC 62955.

APPLICATION

HF187F
HF187F
Charging system of electric vehicle Charging Application Mode3 according to IEC61581-1
