HFD5

Smaller Size For Space Saving

Minimum dimension in the industry:
9.0 mm×4.8 mm×4.9 mm
It helps to reduce the overall size of overall units. Compared with HFD4, the volume of HFD5 is reduced by 40% and installation area by 34%. It is more delicate as a new solution for various applications.
HFD5

Lower Coil Power For Energy Saving

The coil power is 50MW, which is more than 64% lower than HFD4. It will save energy and reduce temperature rise of overall units with higher reliability
HFD5

Directly Driven By Microprocessor

Simplify the circuit design, save the machine space and device cost
For 5VDC, both single-side stable and 1-latching types, the coil current is ≤10mA. There is then no need of intermediate driving components like triode, MOS etc. This will simplify the circuit and in turn save space and cost of overall unit.
HFD5

Reduce The Weight Of Overall Unit For Convenience Of Use

The weight of a single HFD5 is ≈0.5g, which is about 38% less than that of HFD4 (HFD4 weight ≈ 0.8g). Take the unit with 512pcs HFD4 (single side stable) as an example. The overall unit weight can be reduced by 154g if adopting HFD5
HFD5

Low-Powered Electricity Supply Is Applicable For Better Cost

HFD5 helps to reduce the heat, the volume as well as the cost of electricity supply. Take the unit with 512pcs HFD4 (single side stable) as an example. The electricity supply power can be reduce by 46W if adopting HFD5.
HFD5

Smaller Sound In Operation

Benefited from the delicate structure of HFD5, the switching time is ≤2ms and operation sound ≤30dB. It provides more comfort applications such as smart home etc.

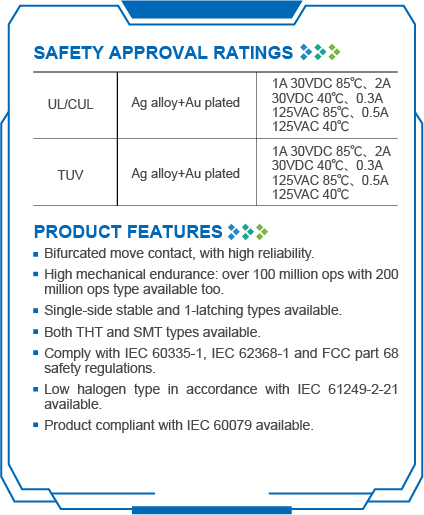

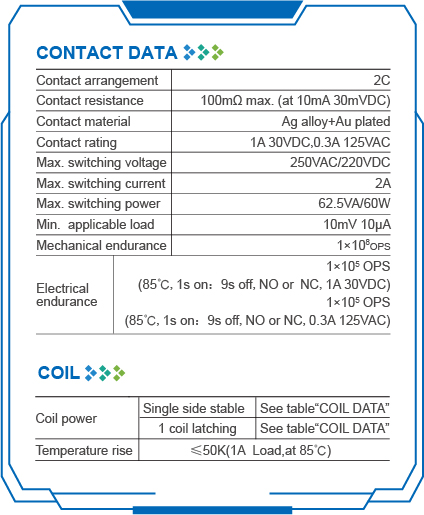

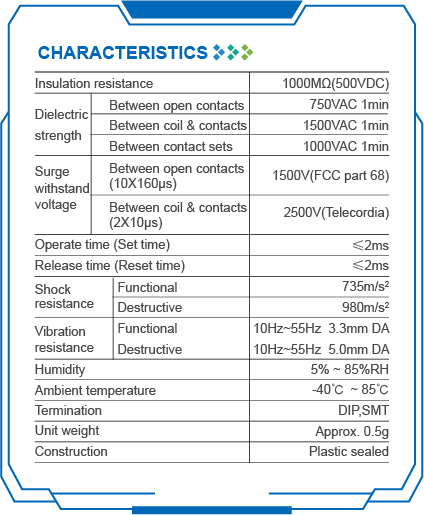

PARAMETER INFORMATION
APPLICATION
