| Main | ||||

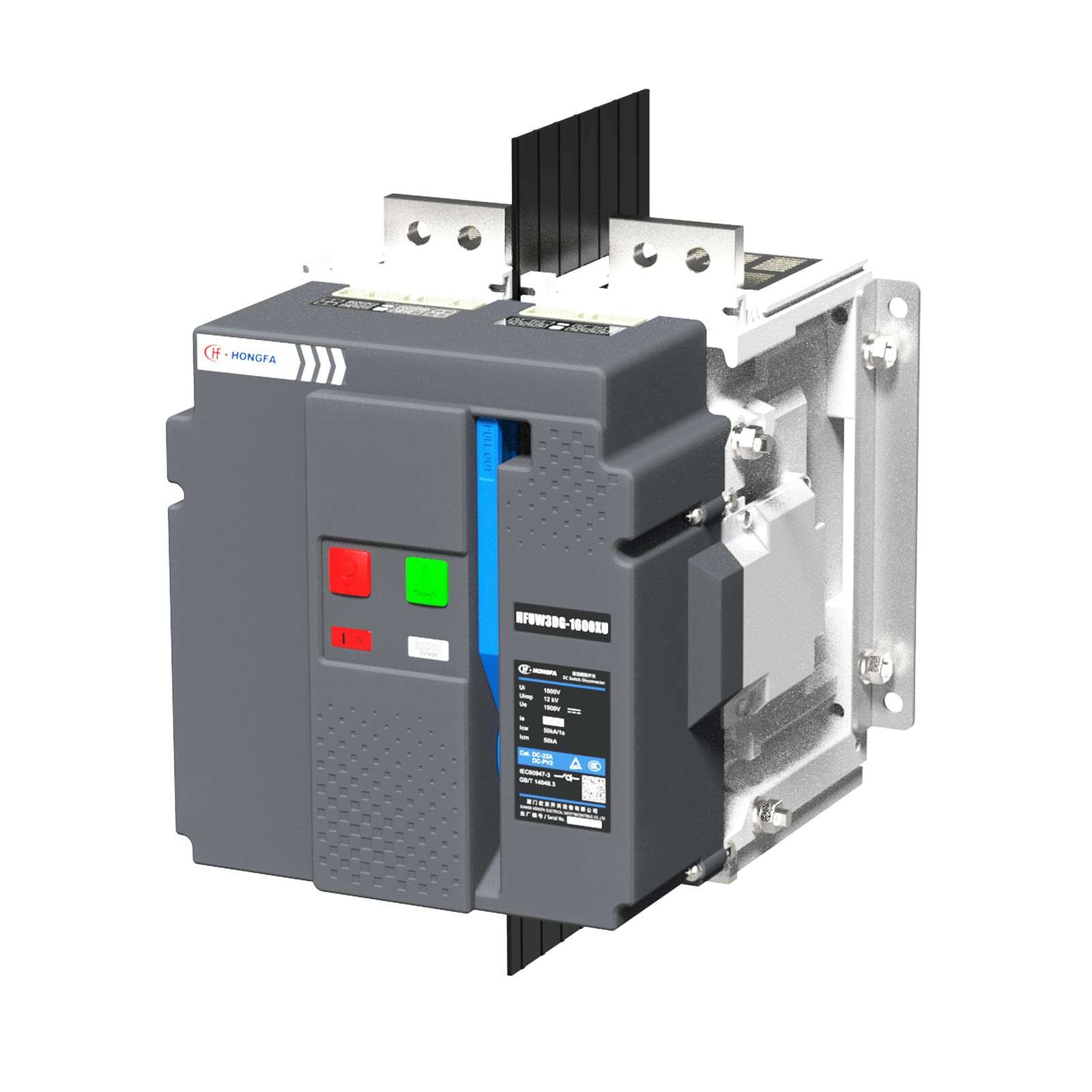

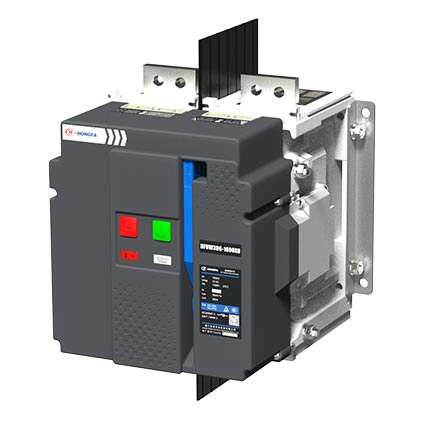

| Range | HFUW3DG | |||
| Product Name | DC Switch disconnecting | |||
| Device Short Name | HFUW3DG-1600XU | |||
| Product or Component Type | Switch disconnecting | |||
| Device Application | Power distribution protection | |||
| Poles Description | 2 | |||
| Line Rated Current | 800A、1000A、1250A、1600A | |||
| Rated Operational Voltage[Ue] | DC1500V | |||
| Selectivity Category | DC22-A 、DC-PV2 | |||
| Mounting Mode | Fixed | |||
| Complementary | ||||
| Rated Short-Time Withstand Current [Icw] | DC1500V 25 kA/1s | |||
| Rated Short-Circuit Making Capacity[Icm] | DC1500V 25 kA | |||
| Rated Insulation Voltage [Ui] | DC1600V | |||
| Rated Impulse Withstand Voltage [Uimp] | 12 kV | |||
| Breaking Time1 | ≤50 ms | |||
| Closing Time2 | ≤70 ms | |||
| Mounting Support | Front | |||
| Connection Pitch | 110mm | |||
| Mechanical Durability | 10000 Without maintenance | |||
| Electrical endurance | DC1500V 500 times | |||
| Height | 294mm、358mm（long busbar） | |||
| Width | 266mm | |||
| Depth | 256mm | |||
| Net Weight（Max） | 16.8kg | |||
| Standards | GB/T 14048.1,GB/T 14048.3 IEC 60947-3 EN60947-3 | |||
| Product Certifications | CCC CB TUV CE | |||
| Environment | ||||
| IP degree of Protection | IP40 （The switch is installed in the switchgear and equipped with a door frame） | |||
| Pollution Degree | III (3) | |||
| Ambient Air Temperature for Operation | -40…+70 °C | |||
| Ambient Air Temperature for Storage | -40…+70 °C | |||
| Operating Altitude | 0...2000 m without derating ＞2000 m with derating | |||
| Packing Units | ||||
| Unit Type of Package | PCE | |||
| Quantity in One Package | 1 | |||
| Package Height | 50 cm | |||
| Package Width | 32.5 cm | |||
| Package Length | 40.5 cm | |||
| Package Weight（Max） | 23.9 kg | |||
Note: 1 Breaking time: The time interval between the switch dis-connector being powered from the shunt coil to the main circuit being disconnected at room temperature
2 Closing time: The time interval from the moment the switch dis-conenctor is closed to the moment when all contacts of the poles are in contact at room temperature. It is recommended to start measuring after the system stabilizes (200ms)
