| Main | |
| Device Application | Distribution |
| Range | UEB1 |

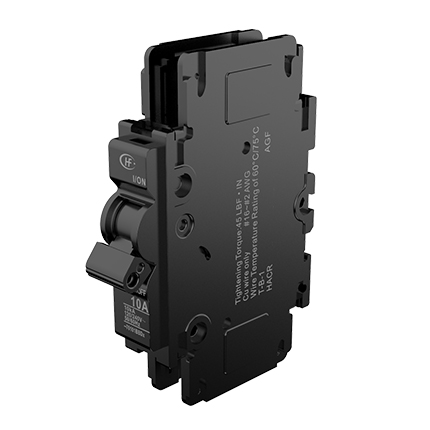

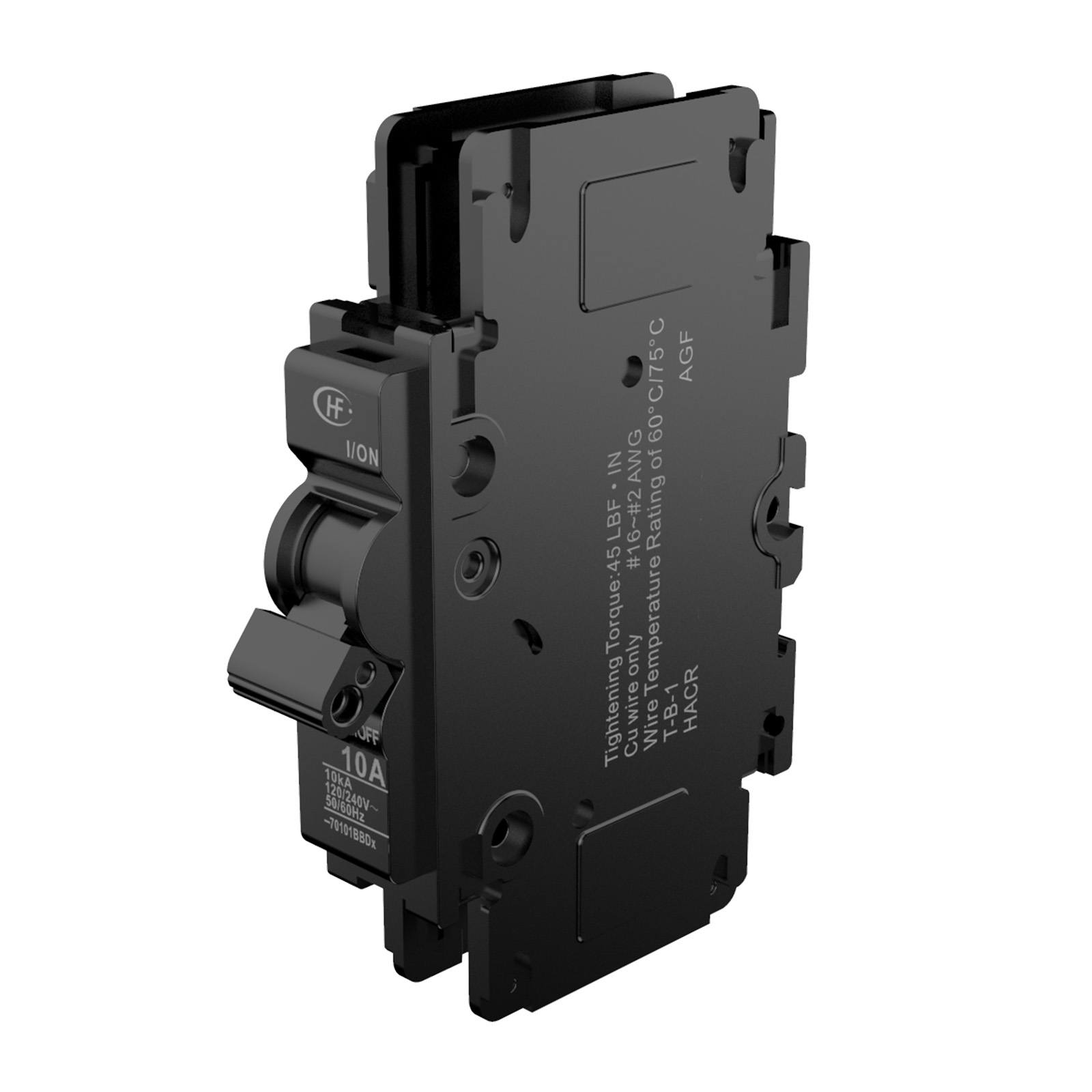

| Product Name | UEB1-70 |
| Product or Component Type | Miniature circuit-breaker |
| Device Short Name | / |
| Poles Description | 1P、2P、3P |
| Rated Current [In] | 5A, 10A, 15A, 20A, 25A, 30A, 35A, 40A, 45A, 50A, 60A |
| Network Type | AC |
| Trip Unit Technology | Thermal-magnetic |
| Breaking Capacity | 10000A |
| Standards | UL489 |
| Complementary | |
| Network Frequency | 50/60Hz |
| Rated Voltage | 120 Va.c./ 240Va.c.（1P、2P）; 240 Va.c.（2P、3P） |
| Rated Insulation Voltage [Ui] | 690 V AC |
| Rated Impulse Withstand Voltage [Uimp] | 4 kV |
| Power-frequency withstand voltage | 2000V/1min |
| Contact Position Indicator | Yes |
| Control Type | Toggle |
| Local Signalling | Trip indicator |
| Mounting Support | DIN rail、Mounting bracket |
| Wire connection terminal | BB—Box lug and Box lug; BQ—Box lug and QC terminal; |
| 9 mm Pitches | / |
| Height | 79.2mm |
| Width | 1P:18.8 mm、2P:37.6 mm、3P:56.4 mm |
| Depth | 102mm |
| Net Weight | 1P:153.0g、、2P: 305.5g 、3P: 457.5g |
| Colour | black |
| Mechanical Durability | 20000 cycles |
| Electrical Durability | 10000 cycles |
| Connections - Terminals | 14AWG-4AWG |
| Tightening Torque | 3.5N·m～4.5 N·m |
| Environment | |
| Pollution Degree | 2 |
| Overvoltage Category | Ⅱ/Ⅲ |
| Tropicalisation | / |
| Relative Humidity | 90%-95% RH（below 40℃） |
| Ambient Air Temperature for Operation | -10℃～+60℃ |
| Ambient Air Temperature for Storage | -40℃～+70℃ |
| Packaging Unit | |
| Unit type of Package 2 | 1 |
| Number of Units in Package 2 | 1P:80、2P: 40、3P: 24 |
| Package Height 2 | 216mm |
| Package Width 2 | 282mm |
| Package Length 2 | 414mm |
| Package Weight 2 | 1P:=13.7kg、2P: =13.7kg 、3P: =12.5kg |
| Offer Sustainability | |
| Sustainable Offer Status | Premium product |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Mercury Free | Yes |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| RoHS Exemption Information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Contractual Warranty | |
| Warranty | 18 months |
Main Documentation
Product Characteristics
| Mechanical Switch to manually disconnect the circuit. |
| ON/OFF Display Indicator(INDI-ON). |
| Common trip for all poles. |
| Surface-Flush Mount, and DIN Rail Mount. |
| Operate in all mounting positions. |
| I/O Lug standard Termination. |
| Box Lug with QC Termination option available. |
