| Main | |
| Product Series | UEC1 |
| Product or Component Type | Contactor |

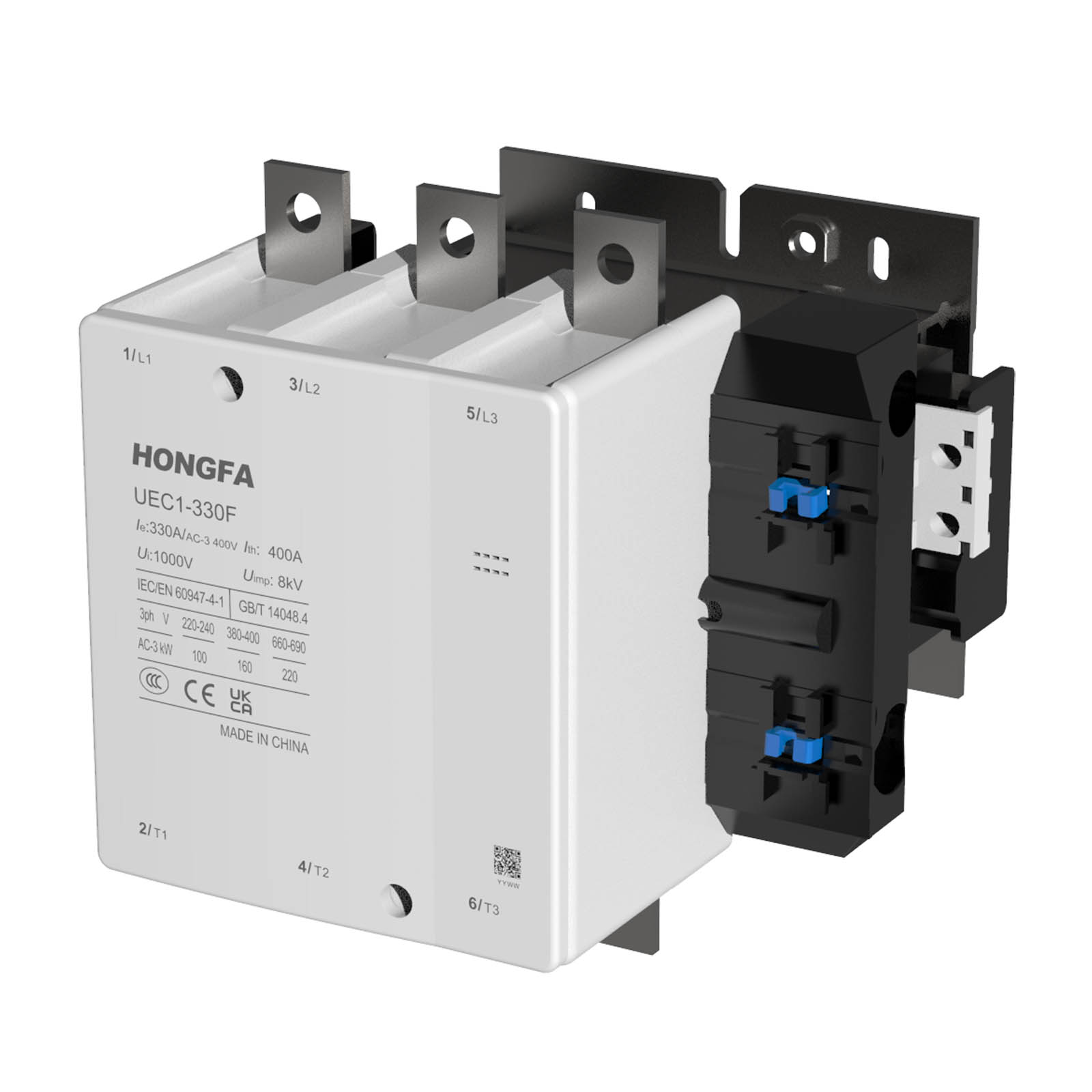

| Device Short Name | UEC1-330F |
| Contactor Application | Motor control Resistive load |
| Utilisation Category | AC-3 AC-4 AC-1 |
| Poles Description | 3P |
| [Ue]Rated Operational Voltage | Power circuit: ≤ 690 V AC 50/60Hz |
| [Ie]Rated Operational Current | 330 A (at ≤40 °C) at ≤ 400 V AC AC-3 for power circuit 400 A (at ≤40 °C) at ≤ 690 V AC AC-1 for power circuit |
[Us] Control Circuit Voltage （AC 50/60Hz） | Voltage (V): 24 36 110 220 -230 380 -400 |
| Code: B7 CC7 F7 M7 Q7 | |
| Complementary | |
| Motor Power kW | 100 kW at 220/240 V AC 50/60 Hz (AC-3) 160 kW at 380/400 V AC 50/60 Hz (AC-3) 180 kW at 415 V AC 50/60 Hz (AC-3) 200 kW at 440 V AC 50/60 Hz (AC-3) 200 kW at 500 V AC 50/60 Hz (AC-3) 220 kW at 660/690 V AC 50/60 Hz (AC-3) |
| Pole Contact Composition | 3 NO |
| [Ith] Conventional Free Air Thermal Current | 400 A (at ≤40 °C) for power circuit |
| [Icw] Rated Short-Time Withstand Current | 2650 A ≤40 °C - 10 s for power circuit 1800 A ≤40 °C - 30 s for power circuit 1300 A ≤40 °C - 1 min for power circuit 900 A ≤40 °C - 3 min for power circuit 750 A ≤40 °C - 10 min for power circuit |
| Associated Fuse Rating | 500 A gG at ≤ 400 V coordination type 2 for power circuit |
| Average Impedance | 0.28 mΩ - Ith 50 Hz for power circuit |
| [Ui] Rated Insulation Voltage | Power circuit: 1000 V conforming to IEC 60947-4-1 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV conforming to IEC 60947 |
| Mechanical Durability | 3 M cycles |
| Electrical Durability | 0.5 M cycles 330 A AC-3 at Ue ≤ 400 V |
| Control Dircuit Type | AC at 50/60 Hz standard |
| Control Circuit Voltage Limits | 0.85...1.1 Us (-5…40 °C): operational AC 50/60 Hz 0.2...0.75 Us (-5…40 °C): drop-out AC 50/60 Hz |
| Inrush Power in VA | 600…700 VA 50/60 Hz (at 25 °C) |
| Hold-in Power Consumption in VA | 8…12 VA 50/60 Hz (at 25 °C) |
| Operating Time | 40...65 ms closing, 100…170 ms opening |
| Maximum Operating Rate | Electrical: 600 cycs/h Mechanical: 1000 cycs/h |
| Connections - Terminals | Power circuit lugs-ring terminals 1 240 mm² Power circuit bar 2 30 x 5 mm Power circuit bolted connection M10 Control circuit: screw clamp terminals 1 1…4 mm² (AWG 18…12)- cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² (AWG 18…12)- cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² (AWG 18…12) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² (AWG 18…14)- cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² (AWG 18…12) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² (AWG 18…12) - cable stiffness: solid without cable end |
| Tightening Torque | Power circuit: 310 lb.in (35 N·m)- on bolt locking terminals - with external hexagonal wrench 16 Control circuit: 11 lb.in （1.2 N·m）- on screw clamp terminals - with screwdriver flat Ø 6 mm Control circuit: 11 lb.in （1.2 N·m）- on screw clamp terminals - with screwdriver Philips No 2 |
| Mounting Support | Screw |
| Environment | |
| Standards | GB/T 14048.4， IEC/EN 60947-4-1， BS EN 60947-4-1 |
| Product Certifications | CCC，CE，UKCA |
| IP Degree of Protection | IP00 front face conforming to IEC 60529 |
Permissible Ambient Air Temperature Around the Device | -5…40 °C for normal operating 40…70 °C with derating (for operation in the range of Us...1.1Us) Storage: -60…80 °C |
| Operating Altitude | 0...3000 m without derating |
| Fire Resistance | Current-carrying parts：850 °C conforming to IEC 60695-2-11 |
| Height | 206 mm |
| Width | 213 mm |
| Depth | 219 mm |
| Net Weight | 8.50 kg |
| Packing Units | |
| Unit Type of Package 1 | 1 box |
| Number of Units in Package 1 | 1 pcs |
| Package 1 Height | 25.5 cm |
| Package 1 Width | 24.7 cm |
| Package 1 Length | 29.0 cm |
| Package 1 Weight | 9.50 kg |
| Unit type of Package 2 | 1 carton |
| Number of Units in Package 2 | 2 pcs |
| Package 2 Height | 28.0 cm |
| Package 2 Width | 32.0 cm |
| Package 2 Length | 52.0 cm |
| Package 2 Weight | 19.0 kg |
| Offer Sustainability | |
| EU RoHS Directive | Conforming |
| Mercury Free | Yes |
| China RoHS Regulation | Conforming |
| RoHS Exemption Information | Yes |
| Contractual Warranty | |
| Warranty | 18 months |
Main Documentation
Product Characteristics
| The contact system is direct-acting type with double breaking points. Aluminum alloy for the bottom base and thermal plastic sealed pack for the coil. The coil is integrated with the yoke, and they can be installed into or taken out of the contactor directly, convenient for use and maintenance. |
| Short flashover distance, within 10mm for contactor 115A…265A. Small space occupation in switchgears. |
| Maximum 4 add-on NO/NC auxiliary contacts available. |
| Three-pole and four-pole are available. |
