| Main | |
| Product Series | UEC1 |
| Product or Component Type | Contactor |

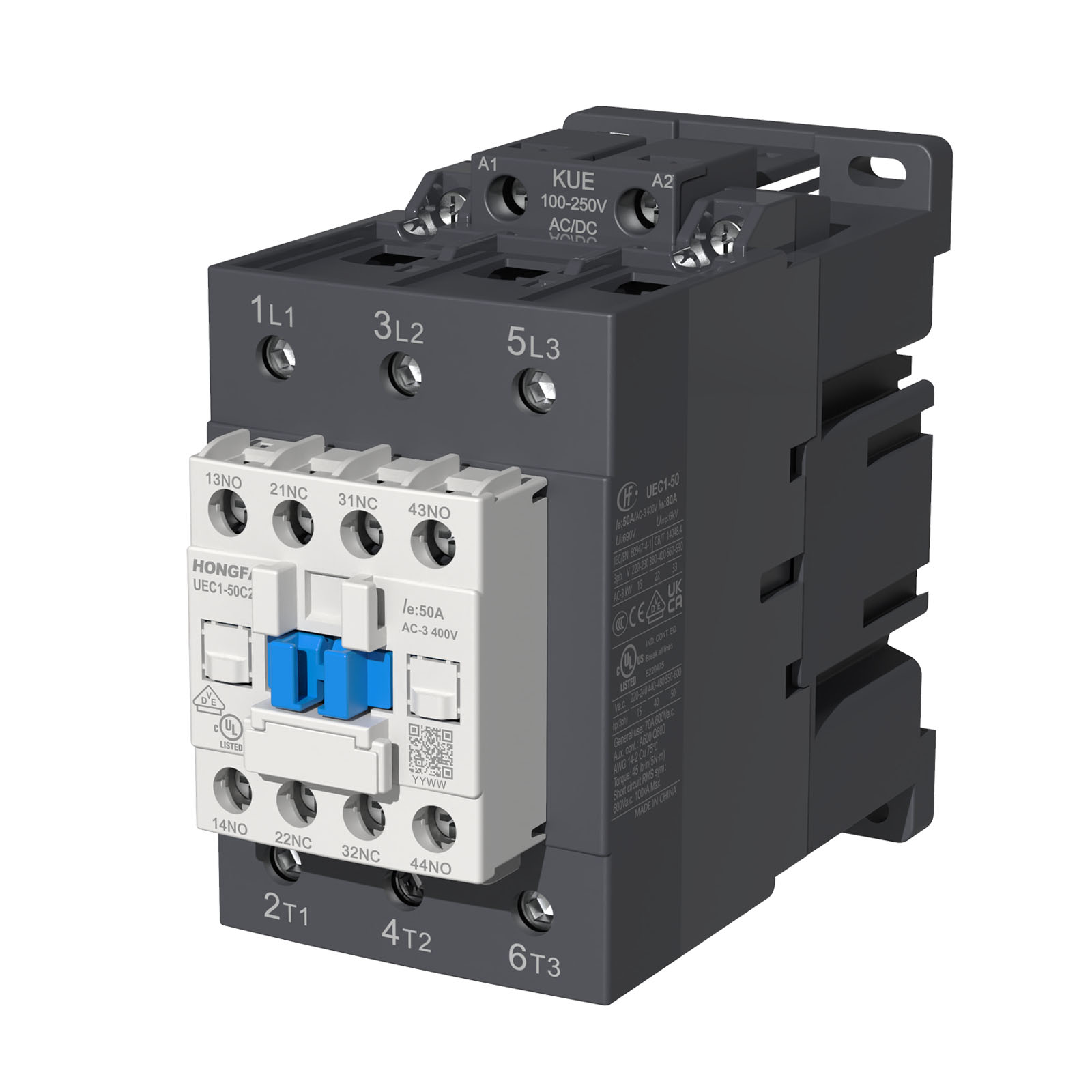

| Device Short Name | UEC1-50C |
| Contactor Application | Motor control Resistive load |
| Utilisation Category | AC-3 AC-4 AC-1 |
| Poles Description | 3P |
| Rated Operational Voltage [Ue] | Power circuit: ≤ 690 V AC 50/60Hz |
| Rated Operational Current [Ie] | 50 A (at ≤60 °C) at ≤ 400 V AC AC-3 for power circuit 80 A (at ≤60 °C) at ≤ 690 V AC AC-1 for power circuit |
[Us] Control Circuit Voltage （AC 50/60Hz） | Voltage (V)(AC/DC): 24-60 100-250 |
| Code: BNE KUE | |
| Complementary | |
| Motor Power kW | 15 kW at 220/230 V AC 50/60 Hz (AC-3) 22 kW at 380/400 V AC 50/60 Hz (AC-3) 33 kW at 660/690 V AC 50/60 Hz (AC-3) |
| Motor Power hp | 3 hp at 110…120 V AC 50/60 Hz for 1 phase motors 7.5 hp at 200…208 V AC 50/60 Hz for 1 phase motors 10 hp at 220…240 V AC 50/60 Hz for 1 phase motors 15 hp at 200…208 V AC 50/60 Hz for 3 phases motors 15 hp at 220…240 V AC 50/60 Hz for 3 phases motors 40 hp at 440…480 V AC 50/60 Hz for 3 phases motors 50 hp at 550…600 V AC 50/60 Hz for 3 phases motors |
| Pole Contact Composition | 3 NO |
| Conventional Free Air Thermal Current [Ith] | 80 A (at ≤60 °C) for power circuit 10 A (at ≤60 °C) for signalling circuit |
| Rated Short-Time Withstand Current [Icw] | 400 A ≤40 °C - 10 s for power circuit 810 A ≤40 °C - 1 s for power circuit 84 A ≤40 °C - 10 min for power circuit 208 A ≤40 °C - 1 min for power circuit |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 80 A gG at ≤ 690 V coordination type 2 for power circuit |
| Average Impedance | 1.5 mΩ - Ith 50 Hz for power circuit |
| [Ui] Rated Insulation Voltage | Power circuit: 690 V conforming to IEC 60947-4-1 Power circuit: 600 V UL Certified Signalling circuit: 690 V conforming to IEC 60947-5-1 Signalling circuit: 600 V UL Certified |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947 |
| Mechanical Durability | 5 M cycles |
| Electrical Durability | 0.9 M cycles 50 A AC-3 at Ue ≤ 400 V |
| Control Dircuit Type | AC/DC |
| Coil Technology | With built-in suppressor module |
| Control Circuit Voltage Limits | 0.85 Usmin...1.1 Usmax (-40…60 °C): operational 0.1 Usmax...0.75 Usmin (-40…60 °C): drop-out |
| Inrush Power in VA | 150VA (at 25 °C) |
| Inrush Power in W | 150W (at 25 °C) |
| Hold-in Power Consumption in VA | 5VA (at 25 °C) |
| Hold-in Power Consumption in W | 5W (at 25 °C) |
| Operating Time | Power circuit: 40...60 ms closing, 18...60 ms opening Signalling circuit (NO): 40...60 ms closing, 18...60 ms opening Signalling circuit (NC): 32...55 ms opening, 22...65 ms closing |
| Maximum Operating Rate | Electrical: 400 cycs/h Mechanical: 1800 cycs/h |
| Connections - Terminals | Power circuit: screw clamp terminals 1 2.5…35 mm² (AWG 14…2)- cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 2.5…16 mm² (AWG 14…6) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 2.5…25 mm² (AWG 14…4) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 2.5…16 mm² (AWG 14…6) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 2.5…35 mm² (AWG 14…2) - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 2.5…25 mm² (AWG 14…4) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 1 1…4 mm² (AWG 18…12) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² (AWG 18…12) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² (AWG 18…12) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² (AWG 18…14) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² (AWG 18…12) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² (AWG 18…12)- cable stiffness: solid without cable end |
| Tightening Torque | Power circuit: 45 lb.in（5 N·m）- on bolt clamp terminals - with internal hexagon socket wrench 4 mm Control circuit: 11 lb.in（1.2 N·m）- on screw clamp terminals - with screwdriver flat Ø 6 mm Control circuit: 11 lb.in（1.2 N·m）- on screw clamp terminals - with screwdriver Philips No 2 |
| Auxiliary Contact Composition | 1NO1NC，2NO2NC，other combinations can be customized |
| Minimum Switching Voltage | 24 V for signalling circuit |
| Minimum Switching Current | 0.1A for signalling circuit |
| Insulation Resistance | > 10 MΩ for signalling circuit |
| Mounting Support | Screw 35mm or 75mm DIN Rail |
| Environment | |
| Standards | GB/T 14048.4，GB/T 14048.5， IEC/EN 60947-4-1，IEC/EN 60947-5-1， BS EN 60947-4-1，BS EN 60947-5-1，UL 60947-4-1，UL 60947-5-1 |
| Product Certifications | CCC，CE，UKCA，VDE，UL(cULus LISTED) |
| IP Degree of Protection | IP20 front face conforming to IEC 60529 |
Permissible Ambient Air Temperature Around the Device | -40…60 °C for normal operating 60…70 °C with derating (for operation in the range of Us...1.1Us) Storage: -60…80 °C |
| Operating Altitude | 0...3000 m without derating |
| Fire Resistance | Current-carrying parts：850 °C conforming to IEC 60695-2-11 |
| Height | 112.5 mm |
| Width | 63 mm |
| Depth | 132 mm |
| Net Weight | 1.0 kg |
| Packing Units | |
| Unit Type of Package 1 | 1 box |
| Number of Units in Package 1 | 1 pcs |
| Package 1 Height | 14.6 cm |
| Package 1 Width | 7.2 cm |
| Package 1 Length | 12.2 cm |
| Package 1 Weight | 1.05 kg |
| Unit type of Package 2 | 1 carton |
| Number of Units in Package 2 | 12 pcs |
| Package 2 Height | 18.8 cm |
| Package 2 Width | 32.5 cm |
| Package 2 Length | 41.5 cm |
| Package 2 Weight | 13.80 kg |
| Offer Sustainability | |
| REACH Regulation | Conforming |
| EU RoHS Directive | Conforming |
| Mercury Free | Yes |
| China RoHS Regulation | Conforming |
| RoHS Exemption Information | Yes |
| Contractual Warranty | |
| Warranty | 18 months |
Dimensions
UEC1-40...65 (3P, AC/DC Coil)

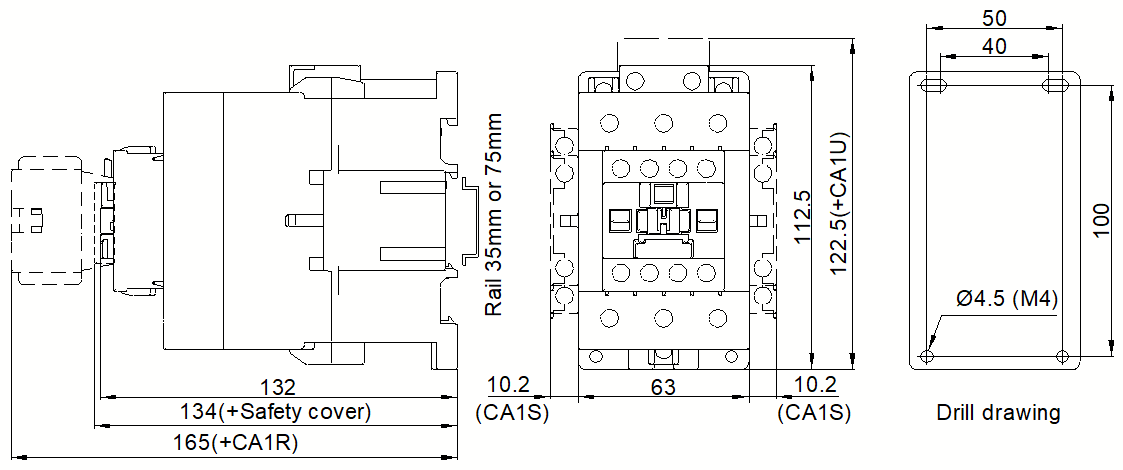

AC Contactor:

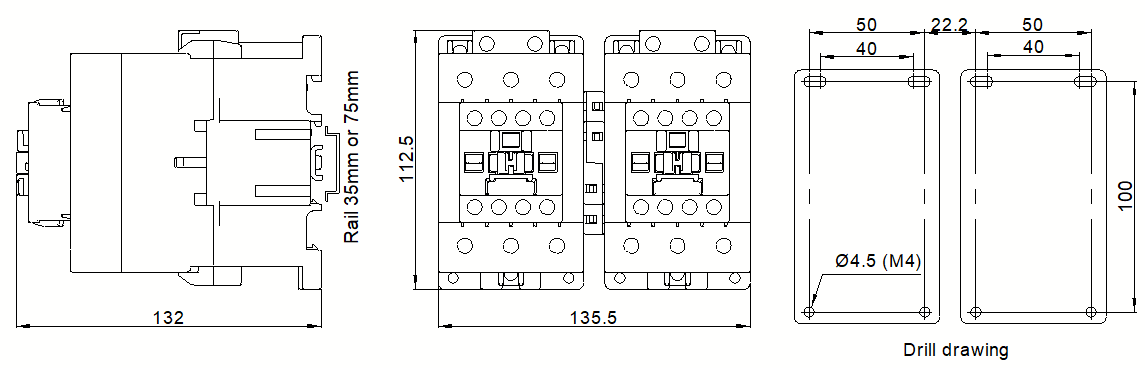

Interlock Contactor:
Note: The unit is mm. The tolerance for mounting holes: ± 0.5; for other external dimensions: ± 1.5, unless otherwise specified.
