| Product Series | UEC1 |
| Product or Component Type | Contactor |

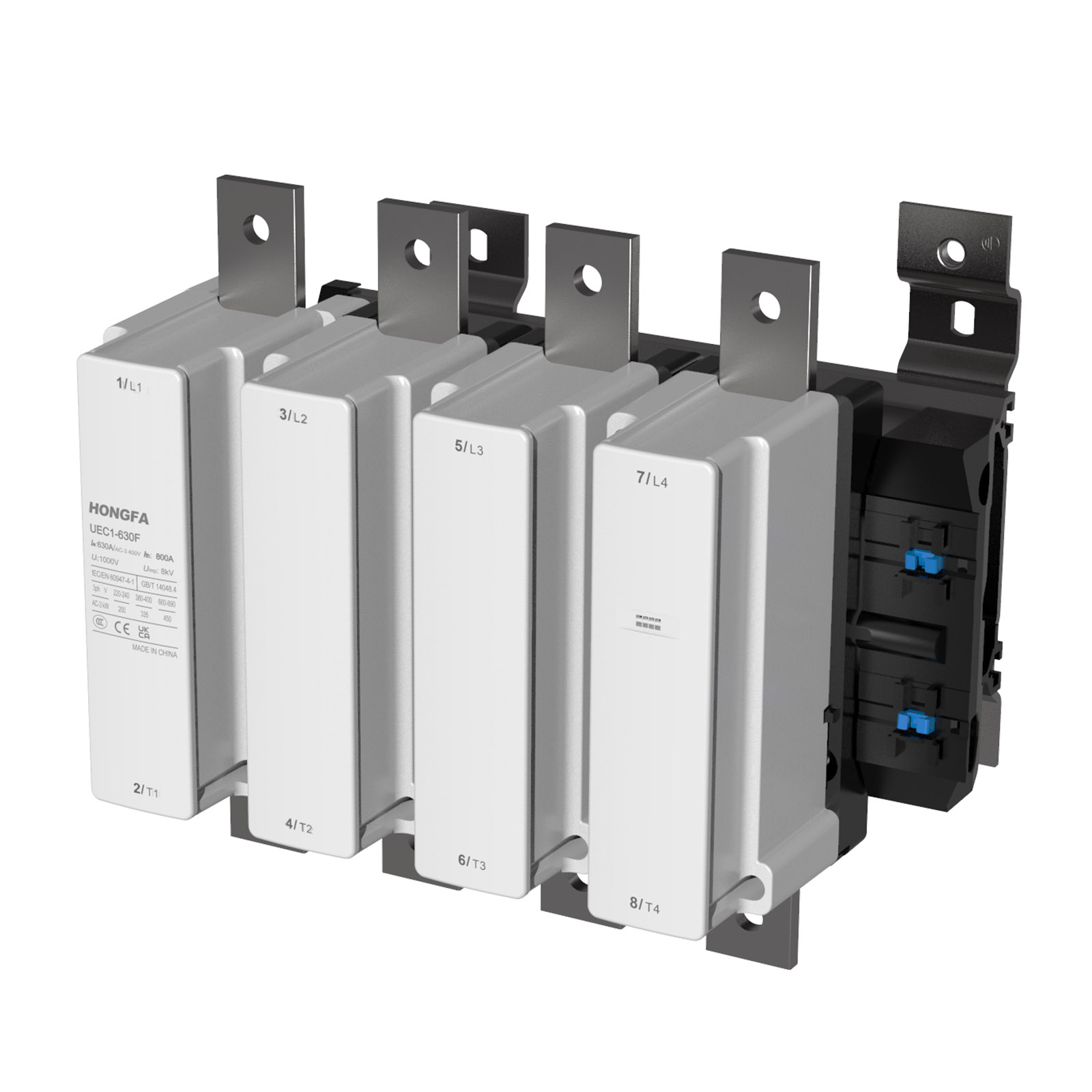

| Device Short Name | UEC1-630F4 |
| Contactor Application | Motor control Resistive load |
| Utilisation Category | AC-3 AC-4 AC-1 |
| Poles Description | 4P |
| [Ue]Rated Operational Voltage | Power circuit: ≤ 690 V AC 50/60Hz |
| [Ie]Rated Operational Current | 630 A (at ≤40 °C) at ≤ 400 V AC AC-3 for power circuit 800 A (at ≤40 °C) at ≤ 690 V AC AC-1 for power circuit |
[Us] Control Circuit Voltage （AC 50/60Hz） | Voltage (V): 110 220 -230 380 -400 |
| Code: F7 M7 Q7 | |
| Complementary | |
| Motor Power kW | 200 kW at 220/240 V AC 50/60 Hz (AC-3) 335 kW at 380/400 V AC 50/60 Hz (AC-3) 375 kW at 415 V AC 50/60 Hz (AC-3) 400 kW at 440 V AC 50/60 Hz (AC-3) 400 kW at 500 V AC 50/60 Hz (AC-3) 450 kW at 660/690 V AC 50/60 Hz (AC-3) |
| Pole Contact Composition | 4 NO |
| [Ith] Conventional Free Air Thermal Current | 800 A (at ≤40 °C) for power circuit |
| [Icw] Rated Short-Time Withstand Current | 5050 A ≤40 °C - 10 s for power circuit 4400 A ≤40 °C - 30 s for power circuit 3400 A ≤40 °C - 1 min for power circuit 2200 A ≤40 °C - 3 min for power circuit 1200 A ≤40 °C - 10 min for power circuit |
| Associated Fuse Rating | 800 A gG at ≤ 400 V coordination type 2 for power circuit |
| Average Impedance | 0.12 mΩ - Ith 50 Hz for power circuit |
| [Ui] Rated Insulation Voltage | Power circuit: 1000 V conforming to IEC 60947-4-1 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV conforming to IEC 60947 |
| Mechanical Durability | 1 M cycles |
| Electrical Durability | 0.2 M cycles 630 A AC-3 at Ue ≤ 400 V |
| Control Dircuit Type | AC at 50/60 Hz standard |
| Control Circuit Voltage Limits | 0.85...1.1 Us (-5…40 °C): operational AC 50/60 Hz 0.2...0.75 Us (-5…40 °C): drop-out AC 50/60 Hz |
| Inrush Power in VA | 1500…1730 VA 50/60 Hz (at 25 °C) |
| Hold-in Power Consumption in VA | 20…25 VA 50/60 Hz (at 25 °C) |
| Operating Time | 40...80 ms closing, 100…200 ms opening |
| Maximum Operating Rate | Electrical: 300 cycs/h Mechanical: 600 cycs/h |
| Connections - Terminals | Power circuit bar 2 60 x 5 mm Power circuit bolted connection M12 Control circuit: screw clamp terminals 1 1…4 mm² (AWG 18…12)- cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² (AWG 18…12)- cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² (AWG 18…12) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² (AWG 18…14)- cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² (AWG 18…12) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² (AWG 18…12) - cable stiffness: solid without cable end |
| Tightening Torque | Power circuit: 513 lb.in (58 N·m)- on bolt locking terminals - with external hexagonal wrench 18 Control circuit: 11 lb.in （1.2 N·m）- on screw clamp terminals - with screwdriver flat Ø 6 mm Control circuit: 11 lb.in （1.2 N·m）- on screw clamp terminals - with screwdriver Philips No 2 |
| Mounting Support | Screw |
| Environment | |
| Standards | GB/T 14048.4， IEC/EN 60947-4-1， BS EN 60947-4-1 |
| Product Certifications | CCC，CE，UKCA |
| IP Degree of Protection | IP00 front face conforming to IEC 60529 |
Permissible Ambient Air Temperature Around the Device | -5…40 °C for normal operating 40…70 °C with derating (for operation in the range of Us...1.1Us) Storage: -60…80 °C |
| Operating Altitude | 0...3000 m without derating |
| Fire Resistance | Current-carrying parts：850 °C conforming to IEC 60695-2-11 |
| Height | 304 mm |
| Width | 389 mm |
| Depth | 255 mm |
| Net Weight | 20.50 kg |
| Packing Units | |
| Unit Type of Package 1 | / |
| Number of Units in Package 1 | / |
| Package 1 Height | / |
| Package 1 Width | / |
| Package 1 Length | / |
| Package 1 Weight | / |
| Unit type of Package 2 | 1 carton |
| Number of Units in Package 2 | 1 pcs |
| Package 2 Height | 34.0 cm |
| Package 2 Width | 34.0 cm |
| Package 2 Length | 45.0 cm |
| Package 2 Weight | 22.90 kg |
| Offer Sustainability | |
| EU RoHS Directive | Conforming |
| Mercury Free | Yes |
| China RoHS Regulation | Conforming |
| RoHS Exemption Information | Yes |
| Contractual Warranty | |
| Warranty | 18 months |
Main Documentation
Product Characteristics
| The contact system is direct-acting type with double breaking points. Aluminum alloy for the bottom base and thermal plastic sealed pack for the coil. The coil is integrated with the yoke, and they can be installed into or taken out of the contactor directly, convenient for use and maintenance. |
| Short flashover distance, within 10mm for contactor 115A…265A. Small space occupation in switchgears. |
| Maximum 4 add-on NO/NC auxiliary contacts available. |
| Three-pole and four-pole are available. |
Technical Parameters
