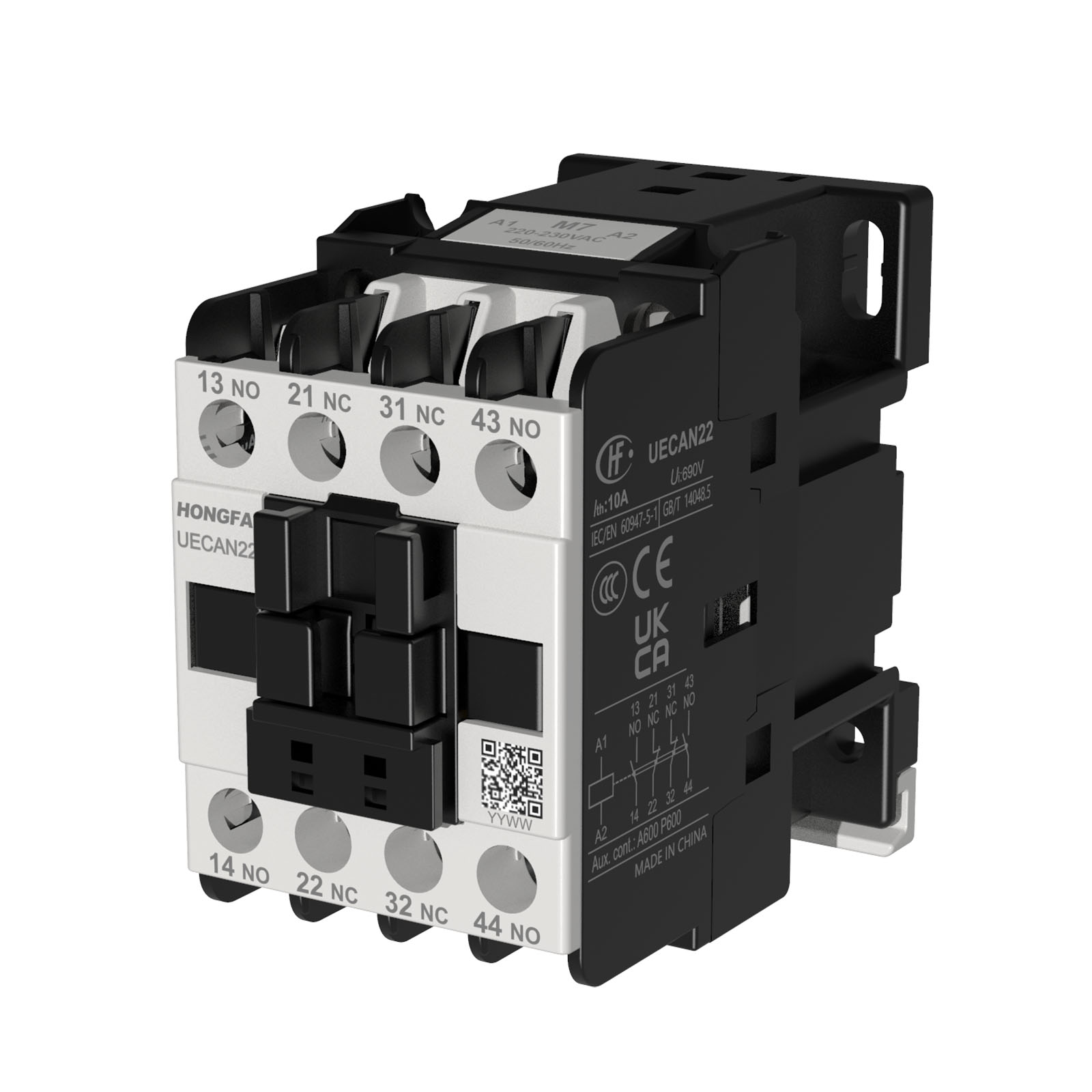

| Main | |
| Product Series | UECAN |
| Product or Component Type | Contactor Relay |
| Device Short Name | UECAN22 |
| Application | Control circuit |
| Pole Contact Composition | 2NO+2NC |
[Us] Control Circuit Voltage （AC 50/60Hz） | Voltage (V): 24 36 48 110 220…230 380 |
| Code: B7 CC7 E7 F7 M7 Q7 | |
| Complementary | |
| Utilisation Category | AC-15 (A600) DC-13 (P600) |
| [Ue] Rated Operational Voltage | ≤ 690 V |
| Mechanical Durability | 10 M cycles |
| Maximum Operating Rate | Electrical: 1200 cycs/h Mechanical: 7200 cycs/h |
| Operating Time | NO: 12...22 ms closing, 4...35 ms opening NC: 4...19 ms opening, 6...40 ms closing |
| Control Circuit Voltage Limits | 0.85...1.1 Us (-40…60 °C): operational AC 50/60 Hz 0.2...0.75 Us (-40…60 °C): drop-out AC 50/60 Hz |
| Average Hold-in Power Consumption in VA | 9 VA 50/60 Hz (at 25 °C) |
| Average Inrush Power in VA | 70 VA 50/60 Hz (at 25 °C) |
| [Ith] Conventional Free Air Thermal Current | 10 A (at ≤60 °C) |
| [Icw] Rated Short-time Withstand Current | 140 A ≤40 °C - 100ms 120 A ≤40 °C – 500ms 100 A ≤40 °C – 1s |
| Associated Fuse Rating | 10 A gG conforming to IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 690 V |
| Insulation Resistance | > 10 MΩ |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Minimum Switching Voltage | 17 V |
| Minimum Switching Current | 5mA |
| Non-overlap time | 1.5 ms |
| Connections - Terminals | screw clamp terminals 1 1…4 mm² (AWG 18…12)- cable stiffness: flexible without cable end screw clamp terminals 2 1…4 mm² (AWG 18…12)- cable stiffness: flexible without cable end screw clamp terminals 1 1…4 mm² (AWG 18…12) - cable stiffness: flexible with cable end screw clamp terminals 2 1…2.5 mm² (AWG 18…14)- cable stiffness: flexible with cable end screw clamp terminals 1 1…4 mm² (AWG 18…12) - cable stiffness: solid without cable end screw clamp terminals 2 1…4 mm² (AWG 18…12) - cable stiffness: solid without cable end M3.5, Terminal width≤8.1mm (0.318 in) |
| Tightening Torque | 10.7 lb.in (1.2 N·m) - on screw clamp terminals - with screwdriver flat Ø 6 mm 10.7 lb.in (1.2 N·m) - on screw clamp terminals - with screwdriver Philips No 2 |
| Mounting Support | Screw 35mm DIN Rail |
| Environment | |
| Standards | GB/T 14048.5，IEC/EN 60947-5-1，BS EN 60947-5-1 |
| Product Certifications | CCC，CE，UKCA |
| IP Degree of Protection | IP20 front face conforming to IEC 60529 |
| Pollution Degree | 3 |
Permissible Ambient Air Temperature Around the Device | -40…60 °C for normal operating 60…70 °C with derating (for operation in the range of Us...1.1Us) Storage: -60…80 °C |
| Operating Altitude | 0...3000 m without derating |
| Height | 74 mm |
| Width | 45 mm |
| Depth | 80 mm |
| Net Weight | 0.30 kg |
| Packing Units | |
| Unit Type of Package 1 | 1 box |
| Number of Units in Package 1 | 1 pcs |
| Package 1 Height | 8.3 cm |
| Package 1 Width | 4.8 cm |
| Package 1 Length | 7.8 cm |
| Package 1 Weight | 0.35 kg |
| Unit type of Package 2 | 1 carton |
| Number of Units in Package 2 | 50 pcs |
| Package 2 Height | 19.5 cm |
| Package 2 Width | 26.0 cm |
| Package 2 Length | 41.0 cm |
| Package 2 Weight | 16.8 kg |
| Offer Sustainability | |
| REACH Regulation | Conforming |
| EU RoHS Directive | Conforming |
| Mercury Free | Yes |
| China RoHS Regulation | Conforming |
| RoHS Exemption Information | Yes |
| Contractual warranty | |
| Warranty | 18 months |

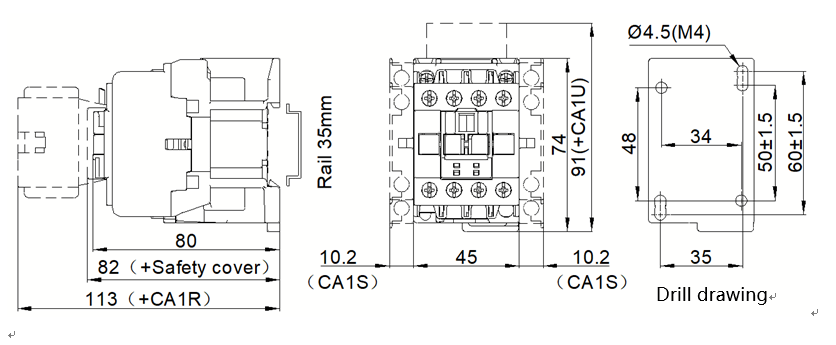

Dimensions
UECAN Contactor relay
AC coil
Note: The unit is mm. The tolerance for mounting holes: ± 0.5; for other external dimensions: ± 1.5, unless otherwise specified.
