| Main | |
| Device Application | Distribution |
| Range | UEG3 |

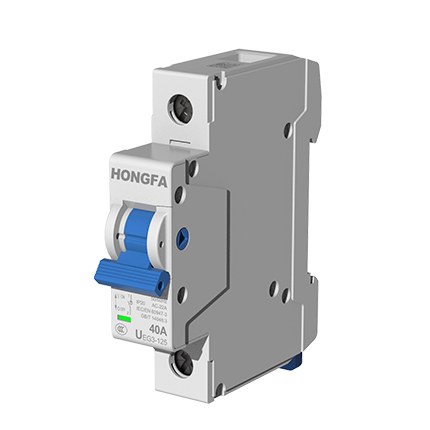

| Product Name | UEG3-125 |
| Product or Component Type | Switch disconnector |
| Device Short Name | / |
| Poles Description | 1P、2P、3P、4P |
| Number of Protected Poles | NO |
| Utilisation Category | AC-22A |
| Suitability for Isolation | Yes |
| Complementary | |
| Rated Operational Current [Ie] | 32A、40A、50A、 63A、 80A、100A、125A |
| Rated Operational Voltage [Ue] | 230 V AC 50/60 Hz（1P）； 400 V AC 50/60 Hz（2P、3P、4P） |
| Rated Short-Circuit Making Capacity [Icm] | 20In switch-disconnector alone |
| Rated Short-Time Withstand Current Icw] | 12In/1s |
| Rated Insulation Voltage [Ui] | 1000 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage [Uimp] | 8 kV |
| Control Type | Toggle |
| Local Signalling | ON/OFF indication |
| Contact Position Indicator | Yes |
| Mounting Mode | Fixed |
| Mounting Support | DIN rail |
| Comb Busbar and Distribution Block Compatibility | NO
|
| 9 mm Pitches | / |
| Height | 80mm |
| Width | 1P:17.6 mm、2P:35.2 mm、3P:52.8 mm、4P:70.4 mm |
| Depth | 75.5mm |
| Colour | White |
| Mechanical Durability | 10000 cycles |
| Electrical Durability | 4000 cycles(≤100A) 1500 cycles(125A) |
| Connections - Terminals | Double terminal (top or bottom) 4…50mm² rigid Double terminal (top or bottom) 4…35 mm² flexible |
| Wire Stripping Length | 14.5 mm for top or bottom connection |
| Tightening Torque | 3.5 N.m top or bottom |
| Environment | |
| Standards | EN 60947-3 IEC 60947-3 |
| IP Degree of Protection | IP20 conforming to IEC 60529 IP20 conforming to EN 60529 |
| Pollution Degree | 3 |
| Tropicalisation | 2 |
| Relative Humidity | 90%-96% RH at 55 °C 95%-100% RH at 25 °C |
| Ambient Air Temperature for Operation | -35…70 °C |
| Ambient Air Temperature for Storage | -40…85 °C |
| Packaging Unit | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package Height 1 | 5.500 cm |
| Package Width 1 | 7.500 cm |
| Package Length 1 | 9.000 cm |
| Package Weight 1 | 341.000 g |
| Unit type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package Height 2 | 8.000 cm |
| Package Width 2 | 9.000 cm |
| Package Length 2 | 22.500 cm |
| Package Weight 2 | 1.421 kg |
| Offer Sustainability | |
| Sustainable Offer Status | Premium product |
| REACh Regulation | REACh Declaration |
| REACh Free of SVHC | Yes |
| EU RoHS Directive | Compliant EU RoHS Declaration |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| RoHS Exemption Information | Yes |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | Circularity Profile |
| Halogen Content Performance | Halogen free plastic parts product |
| Contractual Warranty | |
| Warranty | 18 months |
Main Documentation
The Product is Compatible With
Product Characteristics
| Provide safe use and protection |
| Red and green indicating window to indicate the opening and closing status of the contact |
| Level 2 electric shock protection for safer operation |
| Rated insulation voltage up to 1000V, excellent insulation strength |
| Convenient installation |
| Dual stable snap-on design for easy installation and disassembly |
Technical Parameters
