| Product Series | UER1 | ||||||||

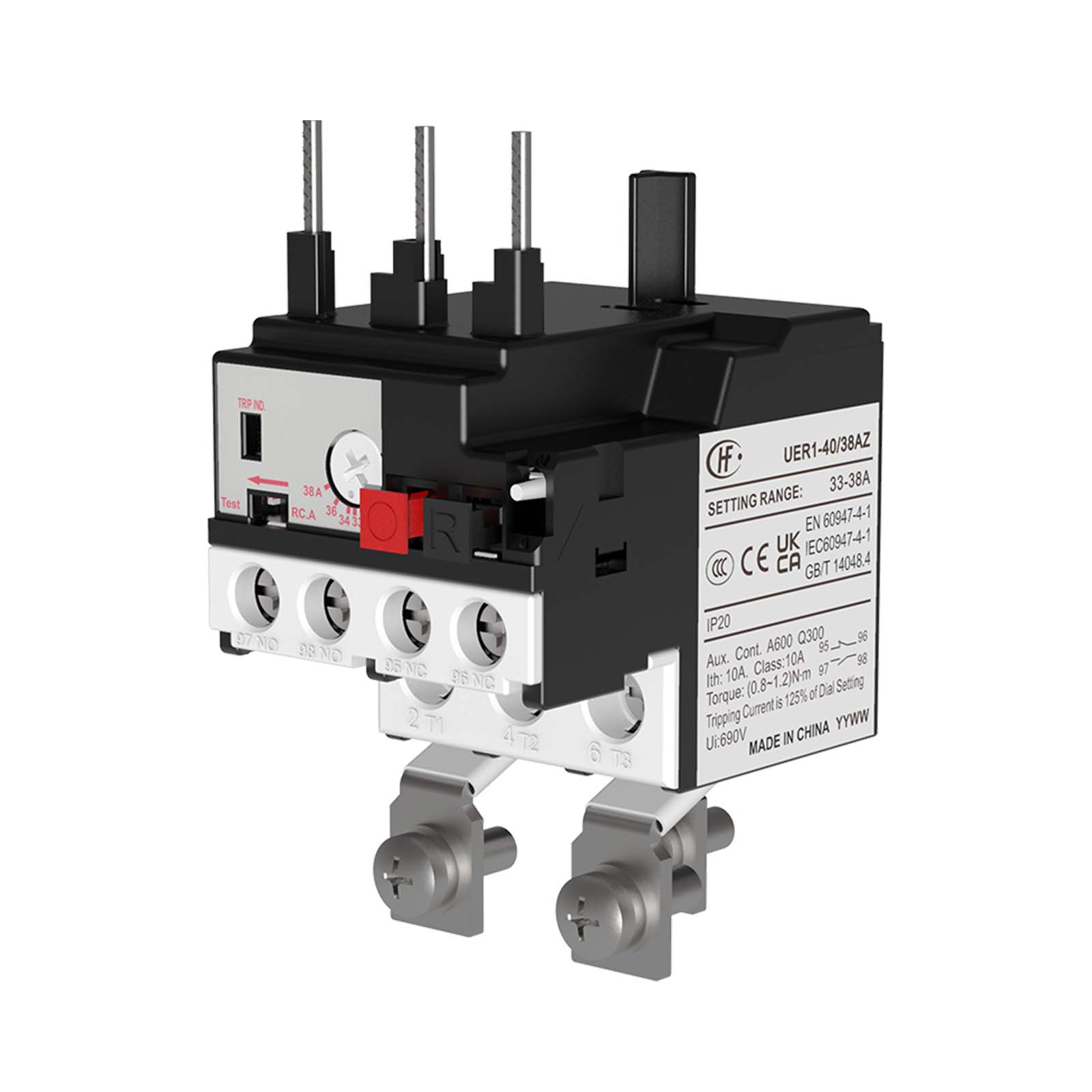

| Product or Component Type | Thermal overload relay | ||||||||
| Device Short Name | UER1-40 | ||||||||
| Relay Application | Motor protection | ||||||||
| Product Compatibility | UEC1-09～38 | ||||||||
| Thermal Protection Adjustment Range | Code | Current setting range A | Code | Current setting range A | Code | Current setting range A | |||
| 0.16 | 0.1～0.16 | 2.5 | 1.8～2.5 | 21.5 | 17.5～21.5 | ||||
| 0.25 | 0.16～0.25 | 3.2 | 2.3～3.2 | 25 | 21～25 | ||||
| 0.4 | 0.25～0.4 | 4.0 | 2.9～4.0 | 30 | 24.5～30 | ||||
| 0.5 | 0.35～0.5 | 4.8 | 3.5～4.8 | 36 | 29～36 | ||||
| 0.63 | 0.45～0.63 | 6.3 | 4.5～6.3 | 38 | 33～38 | ||||
| 0.8 | 0.55～0.8 | 7.5 | 5.5～7.5 | ||||||
| 1.0 | 0.75～1.0 | 10 | 7.2～10 | ||||||
| 1.3 | 0.9～1.3 | 12.5 | 9～12.5 | ||||||
| 1.6 | 1.1～1.6 | 16 | 11.3～16 | ||||||
| 2.0 | 1.4～2.0 | 20 | 15～20 | ||||||
| Complementary |
| ||||||||
| Control Type | Red push-button stop（make the NC contact move without affecting the NO contact ） Blue push-button reset | ||||||||
| Auxiliary Contact Composition | 1NO+1NC | ||||||||
| Permissible Current | 6A 120V AC-15 signalling circuit 3A 240V AC-15 signalling circuit 1.9A 380V AC-15 signalling circuit 1.5A 480V AC-15 signalling circuit 1.4A 500V AC-15 signalling circuit 1.2A 600V AC-15 signalling circuit 0.55A 120V DC-13 signalling circuit 0.27A 240V DC-13 signalling circuit | ||||||||
| Trip Class | Class 10A IEC 60947-4-1 | ||||||||
| Tripping Threshold | 1.16 ± 0.08 In IEC 60947-4-1 | ||||||||
| Phase Failure Sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 IEC 60947-4-1 | ||||||||
| [Uimp] Rated Impulse Withstand Voltage | 6 kV | ||||||||
[Ith] Conventional Free Air Thermal Current | 10 A signalling circuit | ||||||||
| Mounting Support | Combined mounting：Plug connect with AC contactor Independent mounting：Screw or 35mm DIN rail | ||||||||
| Connections-Terminals | Control circuit: screw clamp terminals 1 1…2.5 mm²（AWG 18…14） - cable stiffness：flexible without cable end Control circuit: screw clamp terminals 2 1…2.5 mm²（AWG 18…14） - cable stiffness：flexible without cable end Control circuit: screw clamp terminals 1 1…2.5 mm²（AWG 18…14） - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm²（AWG 18…14） - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…2.5 mm²（AWG 18…14） - cable stiffness：solid without cable end Control circuit: screw clamp terminals 2 1…2.5 mm²（AWG 18…14） - cable stiffness：solid without cable end Control circuit: screw M3.5，terminal width ≤ 8.1 mm | ||||||||
Code＜30： Power circuit: screw clamp terminals 1 1…6 mm²（AWG 18…10）- cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1…6 mm²（AWG 18…10）- cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1…6 mm²（AWG 18…10）- cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…6 mm²（AWG 18…10）- cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1…6 mm²（AWG 18…10）- cable stiffness：solid without cable end Power circuit: screw clamp terminals 2 1…6 mm²（AWG 18…10）- cable stiffness：solid without cable end | |||||||||
Code≥30： Power circuit: screw clamp terminals 1 1…6 mm²（AWG 18…10）- cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…6 mm²（AWG 18…10）- cable stiffness: flexible with cable end | |||||||||
| Tightening Torque | Control circuit: 7…11 lb.in（0.8…1.2 N·m）- on screw clamp terminals | ||||||||
Power circuit: Code＜30：11…16 lb.in（1.2…1.8 N·m）- on screw clamp terminals Code≥30：18…22 lb.in（2.0…2.5 N·m）- on screw clamp terminals | |||||||||
| Height | Combined mounting：69 mm（code＜30）；88.5 mm（code≥30） Independent mounting：78.5 mm（code＜30）；93.5 mm（code≥30） | ||||||||
| Width | Combined mounting：45 mm Independent mounting：49 mm | ||||||||
| Depth | Combined mounting：63.5 mm Independent mounting：70 mm | ||||||||
Net Weight
| Combined mounting：0.114 kg（code＜30）；0.142 kg（code≥30） Independent mounting：0.170 kg（code＜30）；0.193 kg（code≥30） | ||||||||
| Environment | |||||||||
| Standards | GB/T 14048.4，GB/T 14048.5，IEC/EN 60947-4-1，IEC/EN 60947-5-1， BS EN 60947-4-1，BS EN 60947-5-1 | ||||||||
| Product Certifications | CCC，CE，UKCA | ||||||||
| IP Degree Of Protection | IP20 （suitable for front）(except for external terminals) | ||||||||
Ambient Air Temperature For Operation | -5…+60 °C | ||||||||
Ambient Air Temperature For Storage | -40…+70 °C | ||||||||
| Operating altitude | 0… 2000 m without derating | ||||||||
| Packing Units | Combined mounting （code＜30） | Combined mounting （code≥30） | Independent mounting （code＜30） | Independent mounting （code≥30） | |||||
| Unit Type Of Package 1 | 1 box | 1 box | 1 box | 1 box | |||||
| Nunber Of Units In Package 1 | 1 pcs | 1 pcs | 1 pcs | 1 pcs | |||||
| Package 1 Height | 6.7 cm | 7.6 cm | 9.6 cm | 7.6 cm | |||||
| Package 1 Width | 4.9 cm | 5.3 cm | 5.7 cm | 5.3 cm | |||||
| Package 1 Length | 7.2 cm | 9.8 cm | 7.7 cm | 9.8 cm | |||||
| Package 1 Weight | 0.17 kg | 0.19 kg | 0.22 kg | 0.24 kg | |||||
| Unit Type Of Package 2 | 1 carton | 1 carton | 1 carton | 1 carton | |||||
| Nunber Of Units In Package 2 | 80 pcs | 48 pcs | 72 pcs | 48 pcs | |||||
| Package 2 Height | 31.0 cm | 27.0 cm | 23.4 cm | 27.0 cm | |||||
| Package 2 Width | 28.5 cm | 25.2 cm | 38.2 cm | 25.2 cm | |||||
| Package 2 Length | 32.8 cm | 43.2 cm | 50.2 cm | 43.2 cm | |||||
| Package 2 Weight | 11.20 kg | 8.70 kg | 14.10 kg | 11.10 kg | |||||
| Offer Sustainability | |||||||||
| EU RoHS Directive | Conforming | ||||||||
| Mercury Free | Yes | ||||||||
| China RoHS Regulation | Conforming | ||||||||
| Products Outside China RoHS Control | Yes | ||||||||
| RoHS Exemption Information | Yes | ||||||||
| Comtractual warranty | |||||||||
| Warranty | 18 months | ||||||||
Dimensions
UER1-40/□□Z combined mounting
UER1-40/□□D independent mounting
Note: The unit is mm. The tolerance for mounting holes: ± 0.5; for other external dimensions: ± 2, unless otherwise specified.
