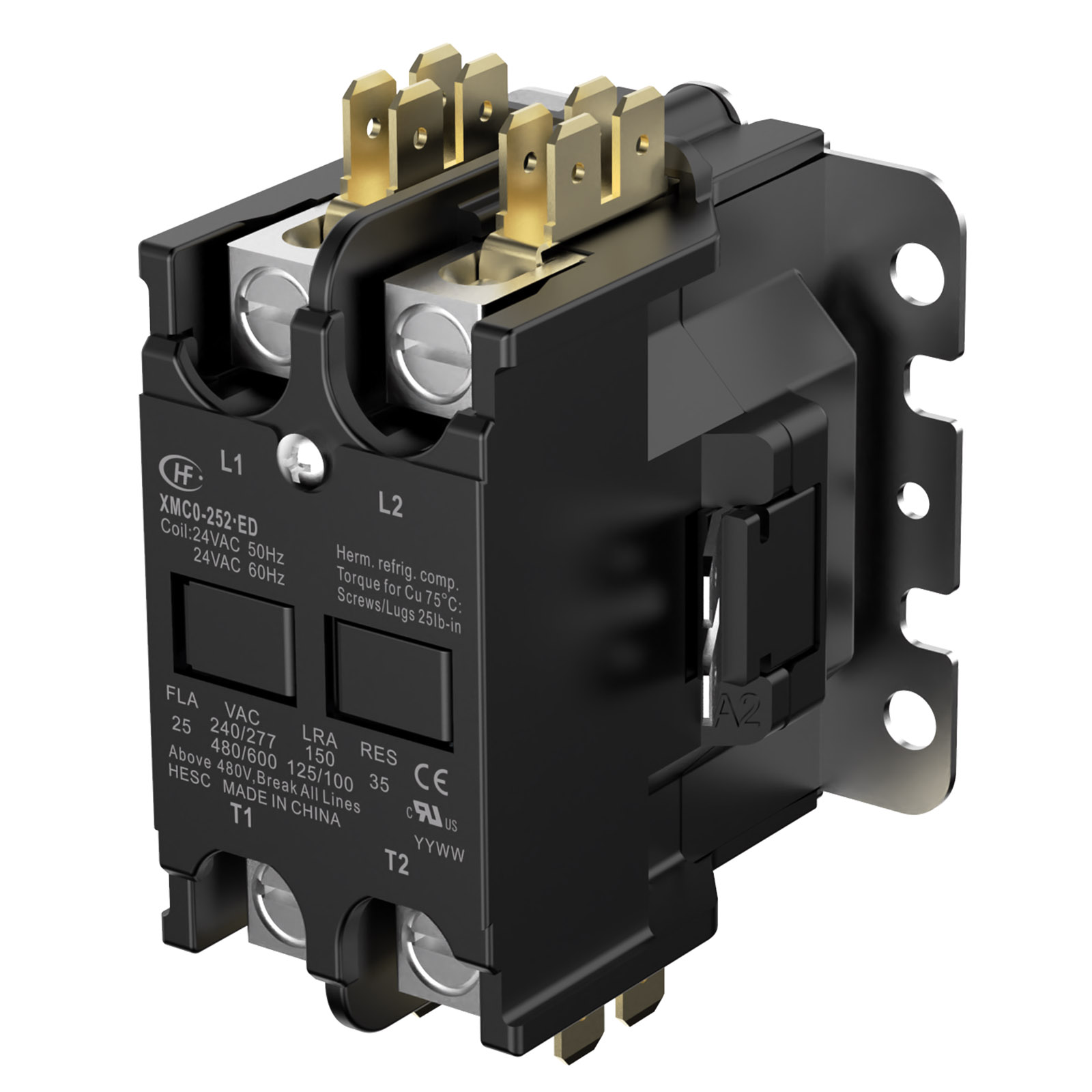

| Main | ||
| Product Series | XMC0 | |
| Product or Component Type | Definite Purpose Contactors | |
| Device Short Name | XMC0-252 | |
| Contactor Application | HVAC, refrigeration, heating, data processing, welding, elevators, hoist & cranes, pool, commercial spa, and food service equipment industries, etc. | |
| Poles Description | 2P | |
| Rated Operational Voltage [Ue] | Power circuit: ≤ 600 V AC 50/60Hz | |
| Full Load Ampere [FLA] | 25 A | |
| Locked Rotor Ampere [LRA] | 150 A @ 240/277 V AC；125 A @ 480 V AC；100 A @ 600 V AC | |
| Resistive Ampere [RES] | 35 A | |
| Control Circuit Voltage [Us] | Code | Voltage |
| E | 24 V AC 50/60Hz | |
| F | 110-120 V AC 50/60Hz | |
| I | 208-220 V AC 50Hz 208-240 V AC 60Hz | |
| L | 277 V AC 60Hz | |
| N | 380-415 V AC 50Hz 440-480 V AC 60Hz | |

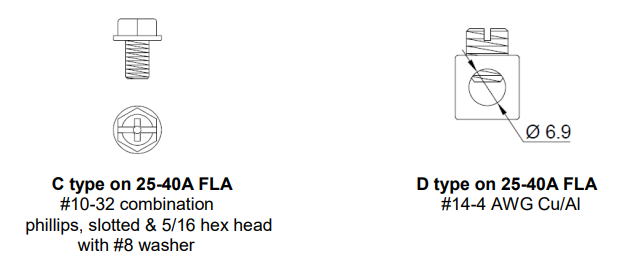

| Main Contact Terminals | C type: Slotted & Hex head washer w/ quick connect | |

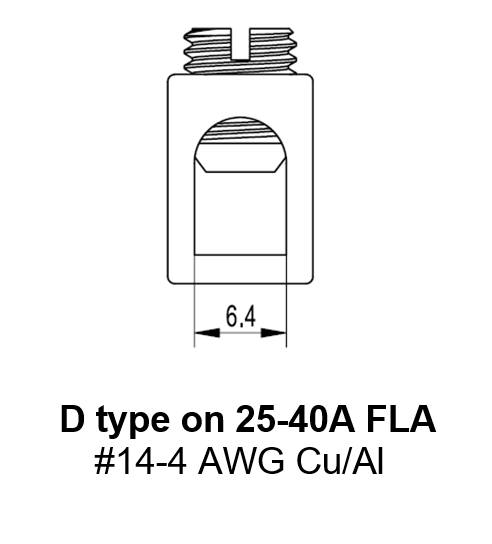

| D type: Box Lug w/ quick connect | ||
E type: Box lug w/ quick connect (Line side) Slotted & Hex head washer w/ quick connect (Load side) | ||
F type: Slotted & Hex head washer w/ quick connect (Line side) Box lug w/ quick connect (Load side)
| ||
| Complementary | ||
| Maximum Horse Power Rating | 3 hp 240/277 V AC, 1phase | |
| Pole Contact Composition | 2 NO | |
| Pollution Degree | 3 | |
Control Circuit Voltage Limits @ 25℃ (Cold state) | 0.8...1.1 Us: operational AC 50/60 Hz 0.2...0.75 Us: drop-out AC 50/60 Hz | |
Nominal Inrushed VA @ 25℃ (Cold state) | E: 27 VA @ 24V 50 Hz, 25 VA @ 24V 60Hz | |
| F: 27 VA @ 120V 50 Hz, 25 VA @ 120V 60Hz | ||
| I: 25 VA @ 220V 50 Hz, 27 VA @ 240V 60Hz | ||
| L: 25 VA @ 277V 60Hz | ||
| N: 27 VA @ 415V 50 Hz, 35 VA @ 480V 60Hz | ||
Nominal Sealed VA @ 25℃ (Cold state) | E: 8.5 VA @ 24V 50 Hz, 6.5 VA @ 24V 60Hz | |
| F: 9 VA @ 120V 50 Hz, 7 VA @ 120V 60Hz | ||
| I: 8.5 VA @ 220V 50 Hz, 8.5 VA @ 240V 60Hz | ||
| L: 8.5 VA @ 277V 60Hz | ||
| N: 11 VA @ 415V 50 Hz, 12 VA @ 480V 60Hz | ||
| Maximum Operating Rate | Electrical: 360 cycs/h Mechanical: 3600 cycs/h | |
| Tightening Torque | Power circuit: 25 lb-in - on screw terminals Power circuit: 25 lb-in - on box lug terminals | |
| Auxiliary Contact Composition | N/A | |
| Mounting Support | Screw 35mm DIN Rail (should be added a DIN rail adapter, suffix“-123”after model name) | |
| Minimum Switching Load | 110 V AC, 1A | |
| Environment | ||
| Standards | UL 60947-4-1, GB/T 14048.4, IEC 60947-4-1, EN 60947-4-1 | |
| Product Certifications | UL, CCC, TÜV | |
Permissible Ambient Air Temperature Around the Device | -40 °C…70 °C (-40 °F…158 °F) for normal operating -40 °C…70 °C (-40 °F…158 °F) for storage | |
| Height | 87 mm | |
| Width | 50 mm | |
| Depth | 61 mm | |
| Net Weight | 0.24 kg | |
| Packing Units | ||
| Unit Type of Package (bulk package) | 1 carton | |
| Number of Units in Package | 50 pcs | |
| Package Height | 17.5 cm | |
| Package Width | 31.2 cm | |
| Package Length | 49.5 cm | |
| Package Weight | 12.7 kg | |
| Offer Sustainability | ||
| REACH Regulation | Conforming | |
| EU RoHS Directive | Conforming | |
| Mercury Free | Yes | |
| China RoHS Regulation | Conforming | |
| RoHS Exemption Information | Yes | |
| Contractual Warranty | ||
| Warranty | 18 months | |
Dimensions
XMC0 2P (2NO), Quantum series

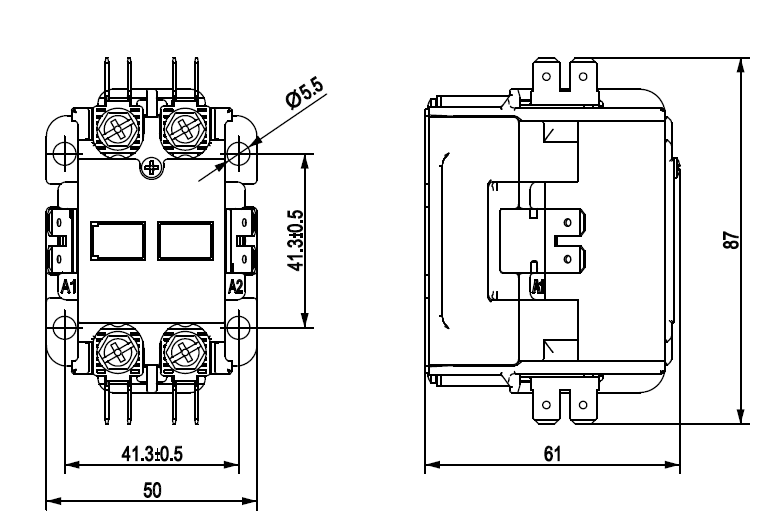

AC Contactor:

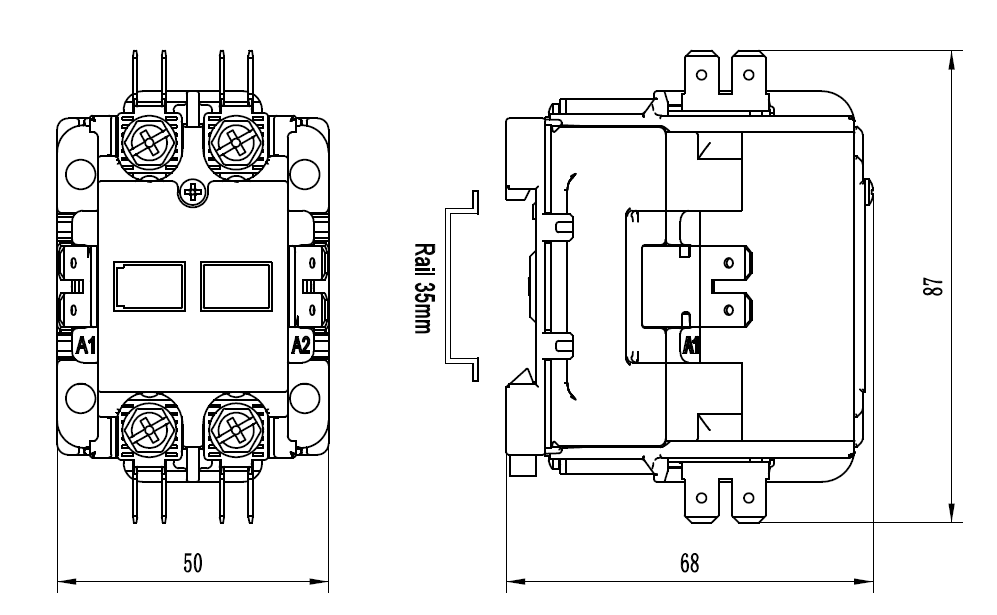

Rail mounting contactor:
Note: The unit is mm. The tolerance for mounting holes: ± 0.5; for other external dimensions: ± 1.5, unless otherwise specified.
