| Main | ||
| Product Series | XMC0 | |
| Product or Component Type | Definite Purpose Contactors | |

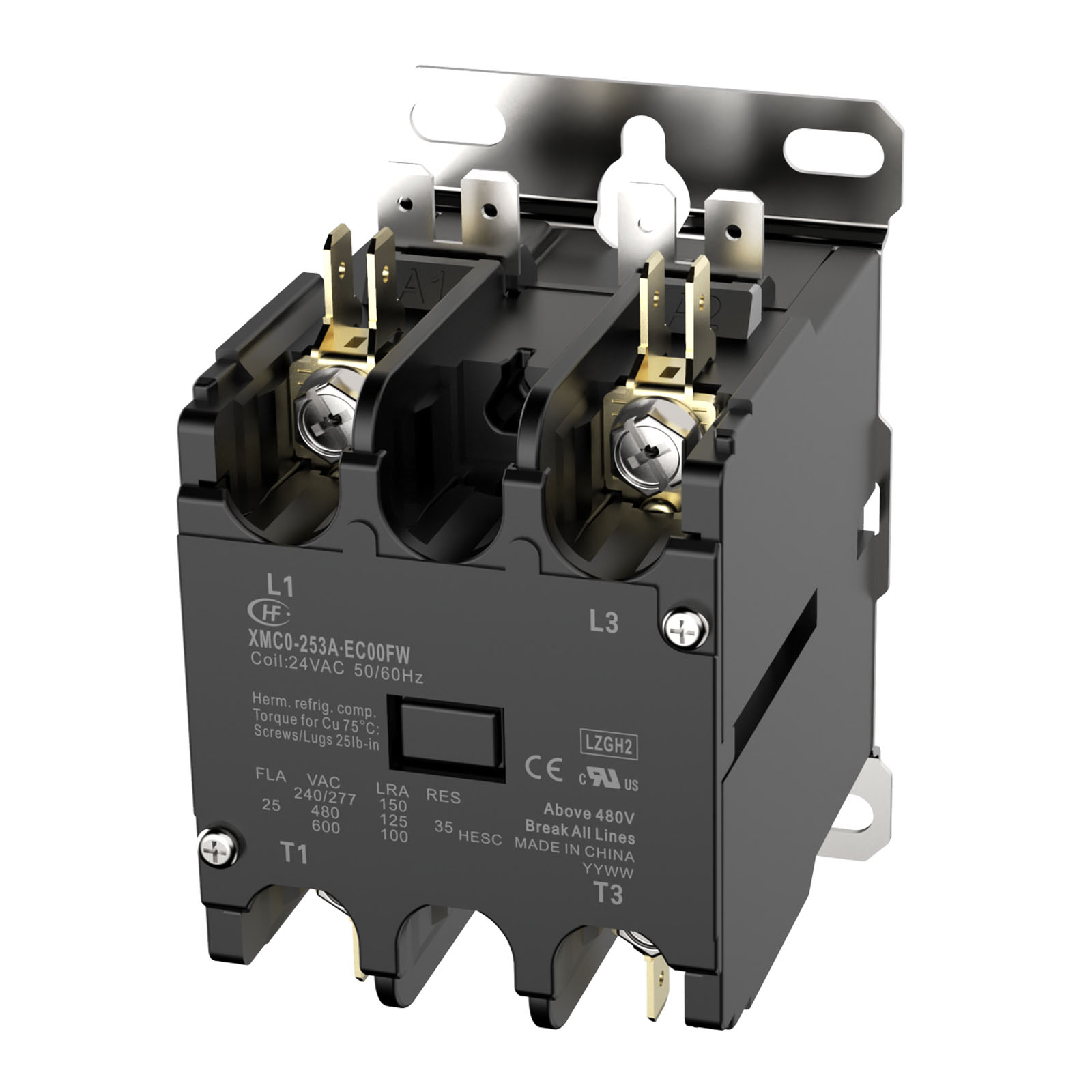

| Device Short Name | XMC0-253A | |
| Contactor Application | HVAC, refrigeration, heating, data processing, welding, elevators, hoist & cranes, pool, commercial spa, and food service equipment industries, etc. | |
| Poles Description | 2P (3P frame) | |
| Rated Operational Voltage [Ue] | Power circuit: ≤ 600 V AC 50/60Hz | |
| Full Load Ampere [FLA] | 25A | |
| Locked Rotor Ampere [LRA] | 150 A @ 240/277 V AC；125 A @ 480 V AC；100 A @ 600 V AC | |
| Resistive Ampere [RES] | 35A | |
| Control Circuit Voltage [Us] | Code | Voltage |
| E | 24 V AC 50/60Hz | |
| F | 110-120 V AC 50/60Hz | |
| I | 208-220 V AC 50Hz 208-240 V AC 60Hz | |
| L | 277 V AC 60Hz | |
| N | 380-415 V AC 50Hz 440-480 V AC 60Hz | |

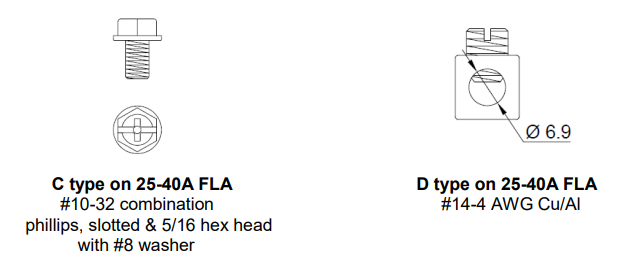

| Main Contact Terminals | C type: Slotted & Hex head washer w/ quick connect | |
| D type: Box Lug w/ quick connect | ||
E type: Box lug w/ quick connect (Line side) Slotted & Hex head washer w/ quick connect (Load side) | ||
F type: Slotted & Hex head washer w/ quick connect (Line side) Box lug w/ quick connect (Load side)
| ||

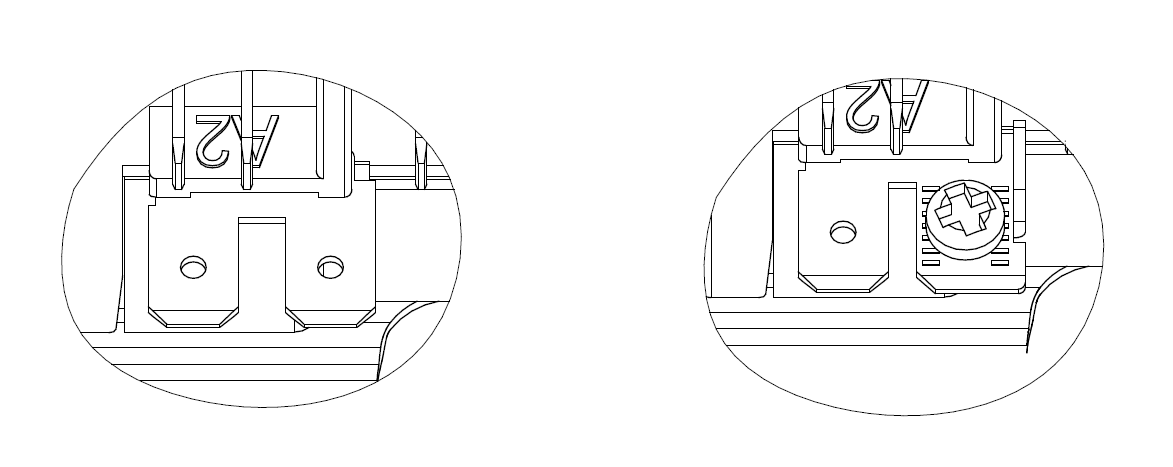

| Coil Terminals |
Dual QC Single QC w/ screw | |
| Complementary | ||
| Maximum Horse Power Rating | 3 hp 240/277 V AC, 1phase | |
| Pole Contact Composition | 2 NO | |
| Pollution Degree | 3 | |
Control Circuit Voltage Limits @ 25℃ (Cold state) | 0.8...1.1 Us: operational AC 50/60 Hz 0.2...0.75 Us: drop-out AC 50/60 Hz | |
Nominal Inrushed VA @ 25℃ (Cold state) | E：55 VA @ 24V 50 Hz, 50 VA @ 24V 60Hz | |
| F：65 VA @ 120V 50 Hz, 60 VA @ 120V 60Hz | ||
| I：45 VA @ 220V 50 Hz, 50 VA @ 240V 60Hz | ||
| L：50 VA @ 277V 60Hz | ||
| N：45 VA @ 415V 50 Hz, 60 VA @ 480V 60Hz | ||
Nominal Sealed VA @ 25℃ (Cold state) | E：10 VA @ 24V 50 Hz, 8 VA @ 24V 60Hz | |
| F：13.5 VA @ 120V 50 Hz, 10 VA @ 120V 60Hz | ||
| I：9.5 VA @ 220V 50 Hz, 9.5 VA @ 240V 60Hz | ||
| L：10.5 VA @ 277V 60Hz | ||
| N：12 VA @ 415V 50 Hz, 13 VA @ 480V 60Hz | ||
| Maximum Operating Rate | Electrical: 360 cycs/h Mechanical: 3600 cycs/h | |
| Tightening Torque | Power circuit: 25 lb-in - on screw terminals Power circuit: 25 lb-in - on box lug terminals Control circuit: 8 lb-in | |

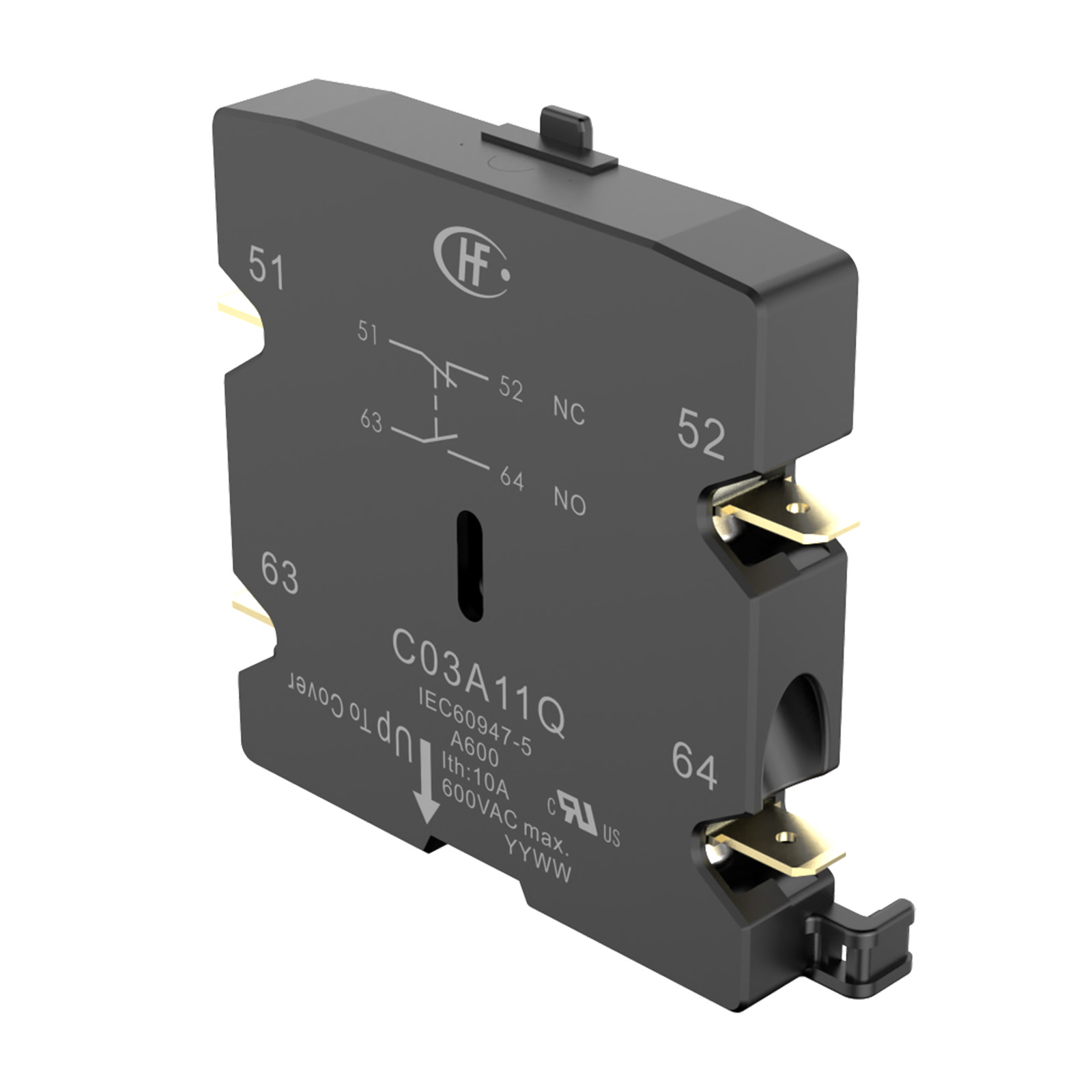

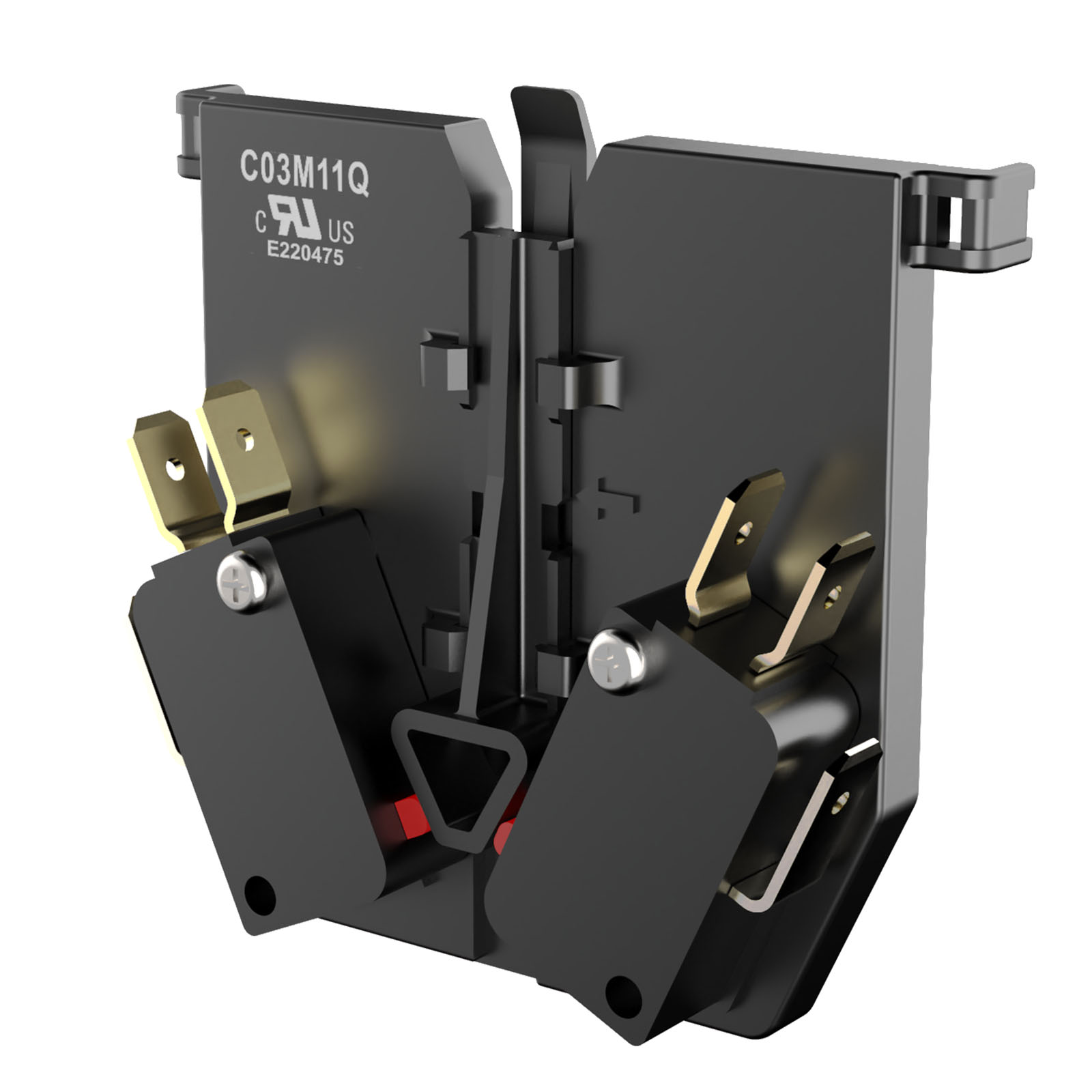

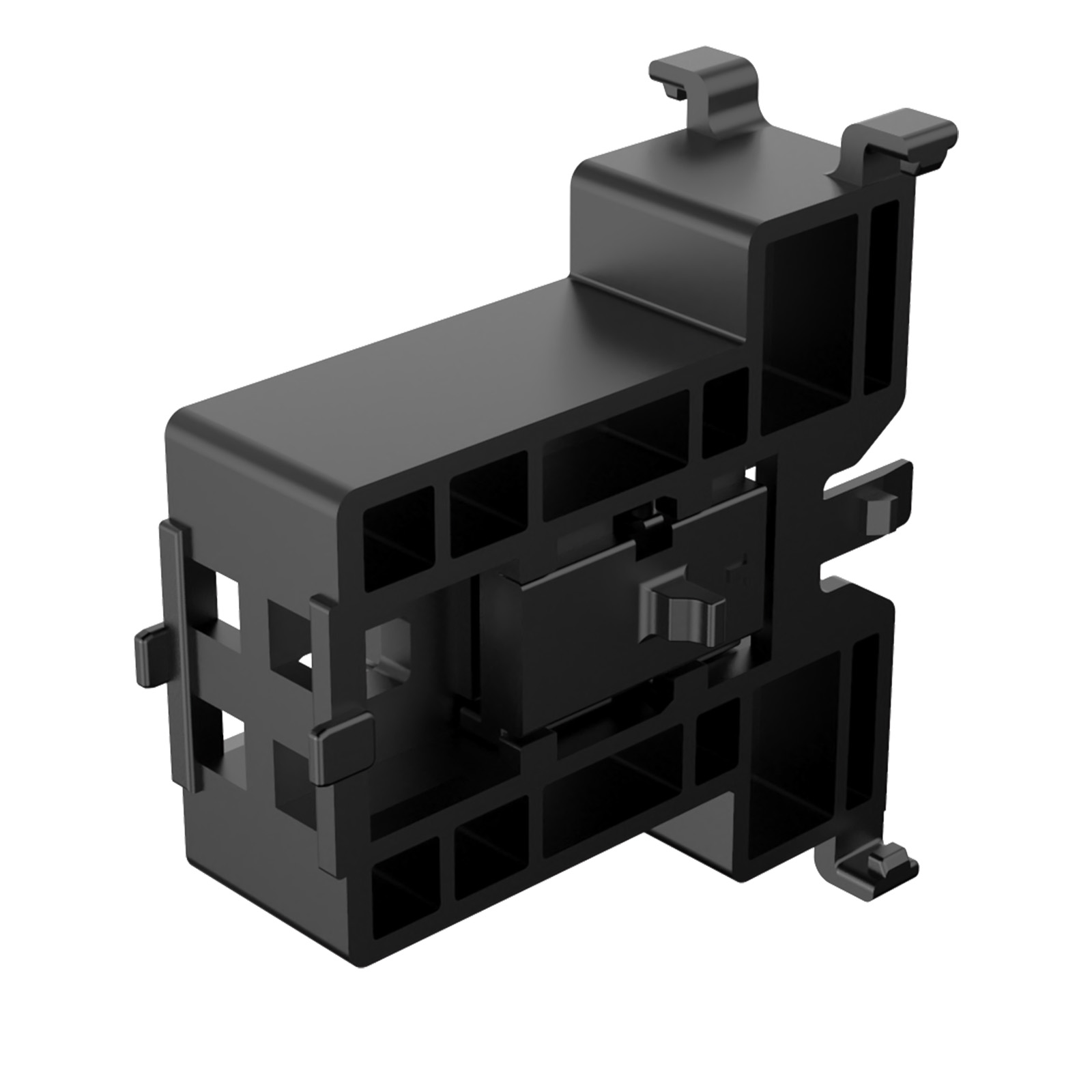

| Auxiliary Contact Composition | W/o built-in auxiliary contacts. Additional auxiliary contact modules can be installed if needed. | |
| Mounting Support | Screw | |
| A2L application | Suffix w/ “W” : Flame Arrest-protected Components for Use in Refrigeration and Air-conditioning Equipment Employing A2L Refrigerants. | |
| Minimum Switching Load | 110 VAC, 1A | |
| Environment | ||
| Standards | UL 60947-4-1, GB/T 14048.4, IEC 60947-4-1, EN 60947-4-1 | |
| Product Certifications | UL, CCC, TÜV | |
Permissible Ambient Air Temperature Around the Device | -40 °C…70 °C (-40 °F…158 °F) for normal operating -40 °C…70 °C (-40 °F…158 °F) for storage | |
| Height | 95 mm | |
| Width | 60.2 mm | |
| Depth | 75 mm | |
| Net Weight | 0.415 kg | |
| Packing Units | ||
| Unit Type of Package (bulk package) | 1 carton | |
| Number of Units in Package | 30 pcs | |
| Package Height | 215 mm | |
| Package Width | 340 mm | |
| Package Length | 360 mm | |
| Package Weight | 13.45 kg | |
| Offer Sustainability | ||
| REACH Regulation | Conforming | |
| EU RoHS Directive | Conforming | |
| Mercury Free | Yes | |
| China RoHS Regulation | Conforming | |
| RoHS Exemption Information | Yes | |
| Contractual Warranty | ||
| Warranty | 18 months | |

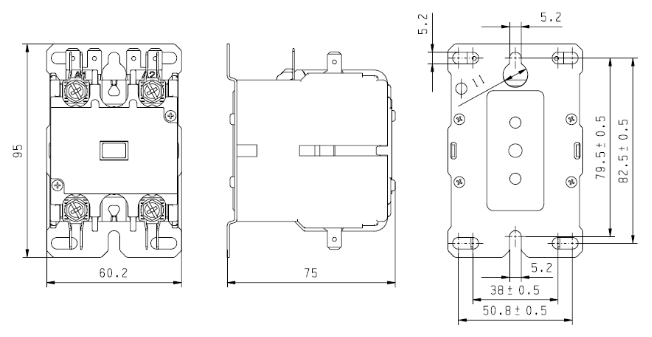

Dimensions
XMC0 2P (3P Frame) 25-40A（2NO）
AC Contactor:
Note: The unit is mm. The tolerance for mounting holes: ± 0.5; for other external dimensions: ± 1.5, unless otherwise specified.
