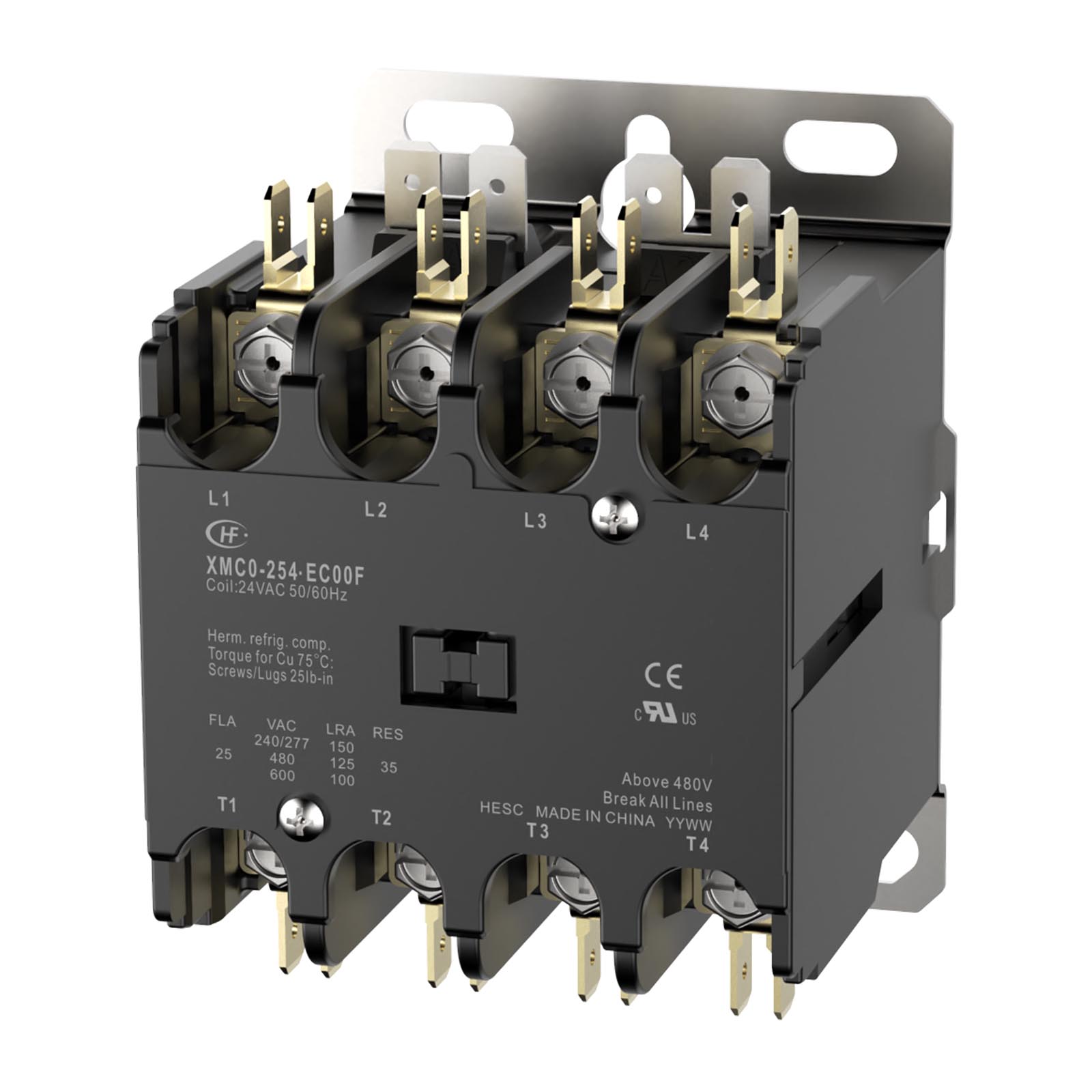

| Main | ||
| Product Series | XMC0 | |
| Product or Component Type | Definite Purpose Contactors | |
| Device Short Name | XMC0-254 | |
| Contactor Application | HVAC, refrigeration, heating, data processing, welding, elevators, hoist & cranes, pool, commercial spa, and food service equipment industries, etc. | |
| Poles Description | 4P | |
| Rated Operational Voltage [Ue] | Power circuit : ≤ 600 V AC 50/60Hz | |
| Full Load Ampere [FLA] | 25 A | |
| Locked Rotor Ampere [LRA] | 150 A @ 240/277 V AC；125 A @ 480 V AC；100 A @ 600 V AC | |
| Resistive Ampere [RES] | 35 A | |
Control Circuit Voltage [Us]
| code | Voltage |
| E | 24 V AC 50/60Hz | |
| F | 110-120 V AC 50/60Hz | |
| I | 208-220 V AC 50Hz 208-240 V AC 60Hz | |
| L | 277 V AC 60Hz | |
| N | 380-415 V AC 50Hz 440-480 V AC 60Hz | |
Main Contact Terminals

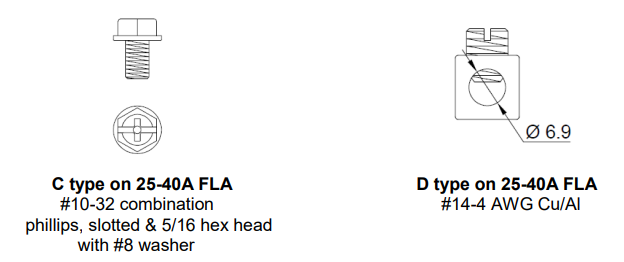

| C type: Slotted & Hex head washer w/ quick connect D type: Box Lug w/ quick connect E type: Box lug w/ quick connect (Line side) Slotted & Hex head washer w/ quick connect (Load side) F type: Slotted & Hex head washer w/ quick connect (Line side) Box lug w/ quick connect (Load side)
| |
| Complementary | ||
| Maximum Horse Power Rating | 3 hp 240/277 V AC, 1phase 7.5 hp 240/277 V AC, 3phase 15 hp 480 V AC, 3phase 20 hp 600 V AC, 3phase | |
| Pole Contact Composition | 4 NO | |
| Pollution Degree | 3 | |
Control Circuit Voltage Limits @ 25℃ (Cold state) | 0.8...1.1 Us: operational AC 50/60 Hz 0.2...0.75 Us: drop-out AC 50/60 Hz | |
Nominal Inrushed VA @ 25℃ (Cold state) | E：60 VA @ 24V 50 Hz, 55 VA @ 24V 60Hz F：65 VA @ 120V 50 Hz, 60 VA @ 120V 60Hz I：55 VA @ 220V 50 Hz, 60 VA @ 240V 60Hz L：60 VA @ 277V 60Hz N：45 VA @ 415V 50 Hz, 60 VA @ 480V 60Hz | |
Nominal Sealed VA @ 25℃ (Cold state) | E：12 VA @ 24V 50 Hz, 9 VA @ 24V 60Hz F：14 VA @ 120V 50 Hz, 11 VA @ 120V 60Hz I：12.5 VA @ 220V 50 Hz, 12 VA @ 240V 60Hz L：11.5 VA @ 277V 60Hz N：14 VA @ 415V 50 Hz, 15.5 VA @ 480V 60Hz | |
| Maximum Operating Rate | Electrical: 360 cycs/h Mechanical: 3600 cycs/h | |
| Tightening Torque | Power circuit: 25 lb-in - on screw terminals Power circuit: 25 lb-in - on bux lug terminals | |
| Auxiliary Contact Composition | W/o built-in auxiliary contacts. Additional auxiliary contact modules can be installed if needed. | |
| Mounting Support | Screw | |
| Minimum Switching Load | 110 VAC, 1A | |
| Environment | ||
| Standards | UL 60947-4-1，EN IEC 60947-4-1 | |
| Product Certifications | UL，TÜV | |
| Permissible Ambient Air Temperature Around the Device | -40 °C…70 °C (-40 °F…158 °F) for normal operating -40 °C…70 °C (-40 °F…158 °F) for storage | |
| Height | 95 mm | |
| Width | 73 mm | |
| Depth | 75 mm | |
| Net Weight | 0.52 kg | |
| Packing Units | ||
| Unit Type of Package | 1 box 1 carton | |
| Number of Units in Package | 1 pcs 30 pcs | |
| Package Height | 82 mm 138 mm | |
| Package Width | 78 mm 355 mm | |
| Package Length | 100 mm 445 mm | |
| Package Weight | 0.653 kg 16.6kg | |
| Offer Sustainability | ||
| REACH Regulation | Conforming | |
| EU RoHS Directive | Conforming | |
| Mercury Free | Yes | |
| China RoHS Regulation | Conforming | |
| RoHS Exemption Information | Yes | |
| Contractual Warranty | ||
| Warranty | 18 months | |
Dimensions

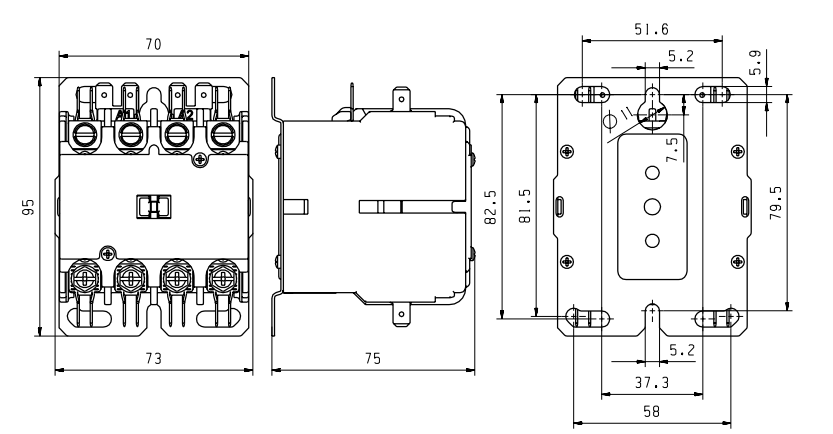

XMC0 4P 25-40A（4NO）
AC Contactor:
Note: The unit is mm. The tolerance for mounting holes: ± 0.5; for other external dimensions: ± 1.5,unless otherwise specified
