| Main | |||
| Product Series | XMC0 | ||
| Product or Component Type | Definite Purpose Contactors | ||

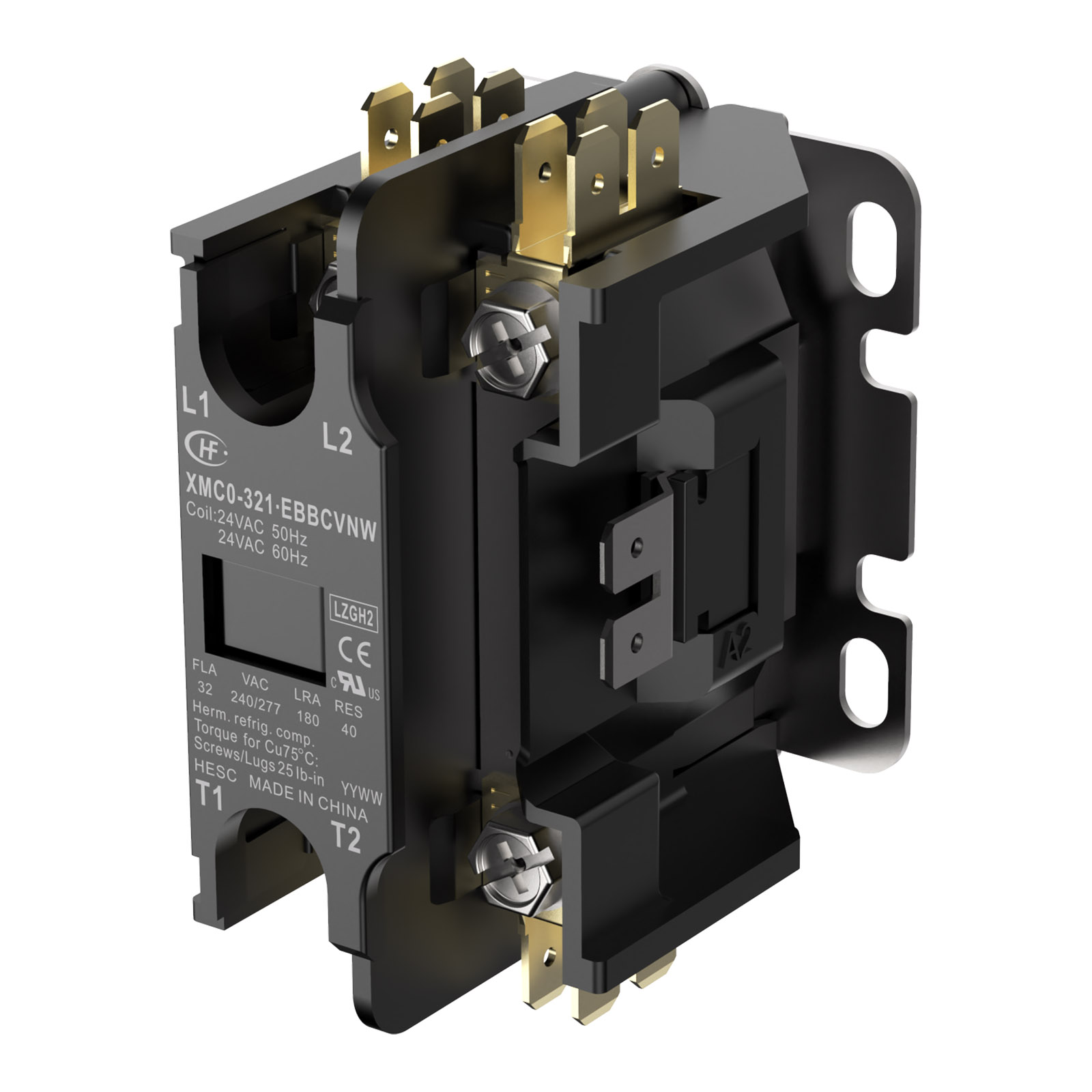

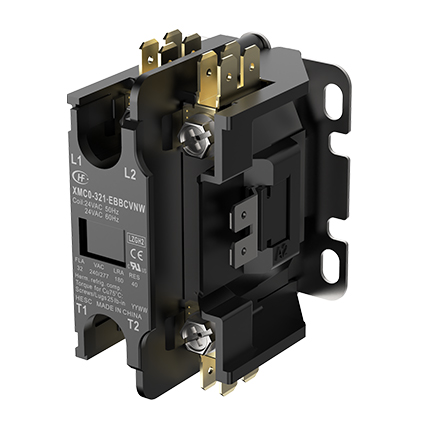

| Device Short Name | XMC0-321 | ||
| Contactor Application | HVAC, refrigeration, heating, data processing, welding, elevators, hoist & cranes, pool, commercial spa, and food service equipment industries, etc. | ||
| Poles Description | 1P+SHUNT | ||
| Rated Operational Voltage [Ue] | Power circuit: ≤ 600 V AC 50/60Hz | ||
| Full Load Ampere [FLA] | 32 A | ||
| Locked Rotor Ampere [LRA] | 180 A @ 240/277 V AC；150 A @ 480 V AC；120 A @ 600 V AC | ||
| Resistive Ampere [RES] | 40 A | ||
| Control Circuit Voltage [Us] | Code | Voltage | |
| E | 24 V AC 50/60Hz | ||
| F | 110-120 V AC 50/60Hz | ||
| I | 208-220 V AC 50Hz 208-240 V AC 60Hz | ||
| L | 277 V AC 60Hz | ||
| N | 380-415 V AC 50Hz 440-480 V AC 60Hz | ||

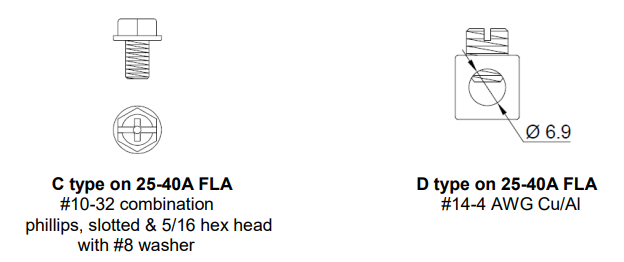

| Main Contact Terminals | C type: Slotted & Hex head washer w/ quick connect | ||
| D type: Box Lug w/ quick connect | |||
E type: Box lug w/ quick connect (Line side) Slotted & Hex head washer w/ quick connect (Load side) | |||
F type: Slotted & Hex head washer w/ quick connect (Line side) Box lug w/ quick connect (Load side)
| |||
| Coil Terminals |  |  | |
| Normal type terminal | Vertical type terminal | ||
| Complementary | |||
| Maximum Horse Power Rating | 2 hp 240/277 V AC, 1phase | ||
| Pole Contact Composition | 1 NO | ||
| Pollution Degree | 3 | ||
Control Circuit Voltage Limits @ 25℃ (Cold state) | 0.8...1.1 Us: operational AC 50/60 Hz 0.2...0.75 Us: drop-out AC 50/60 Hz | ||
Nominal Inrushed VA @ 25℃ (Cold state) | E: 27 VA @ 24V 50 Hz, 25 VA @ 24V 60Hz | ||
| F: 27 VA @ 120V 50 Hz, 25 VA @ 120V 60Hz | |||
| I: 25 VA @ 220V 50 Hz, 27 VA @ 240V 60Hz | |||
| L: 25 VA @ 277V 60Hz | |||
| N: 27 VA @ 415V 50 Hz, 35 VA @ 480V 60Hz | |||
Nominal Sealed VA @ 25℃ (Cold state) | E: 8.5 VA @ 24V 50 Hz, 6.5 VA @ 24V 60Hz | ||
| F: 9 VA @ 120V 50 Hz, 7 VA @ 120V 60Hz | |||
| I: 8.5 VA @ 220V 50 Hz, 8.5 VA @ 240V 60Hz | |||
| L: 8.5 VA @ 277V 60Hz | |||
| N: 11 VA @ 415V 50 Hz, 12 VA @ 480V 60Hz | |||
| Maximum Operating Rate | Electrical: 360 cycs/h Mechanical: 3600 cycs/h | ||
| Tightening Torque | Power circuit: 25 lb-in - on screw terminals Power circuit: 25 lb-in - on box lug terminals | ||
| Auxiliary Contact Composition | N/A | ||
| Mounting Support | Screw 35mm DIN Rail (should be added a DIN rail adapter, suffix“-123”after model name) | ||
| A2L Application | Suffix w/ “W” : Flame Arrest-protected Components for Use in Refrigeration and Air-conditioning Equipment Employing A2L Refrigerants. | ||
| Minimum Switching Load | 110 V AC, 1A | ||
| Environment | |||
| Standards | UL 60947-4-1, GB/T 14048.4, IEC 60947-4-1, EN 60947-4-1 | ||
| Product Certifications | UL, CCC, TÜV | ||
Permissible Ambient Air Temperature Around the Device | -40 °C…70 °C (-40 °F…158 °F) for normal operating -40 °C…70 °C (-40 °F…158 °F) for storage | ||
| Height | 81 mm | ||
| Width | 52 mm | ||
| Depth | 59 mm | ||
| Net Weight | 0.22 kg | ||
| Packing Units | |||
| Unit Type of Package (bulk package) | 1 carton | ||
| Number of Units in Package | 50 pcs | ||
| Package Height | 17.5 cm | ||
| Package Width | 31 cm | ||
| Package Length | 46 cm | ||
| Package Weight | 11.9 kg | ||
| Offer Sustainability | |||
| REACH Regulation | Conforming | ||
| EU RoHS Directive | Conforming | ||
| Mercury Free | Yes | ||
| China RoHS Regulation | Conforming | ||
| RoHS Exemption Information | Yes | ||
| Contractual Warranty | |||
| Warranty | 18 months | ||
Dimensions
XMC0 1P+SHUNT (1NO)

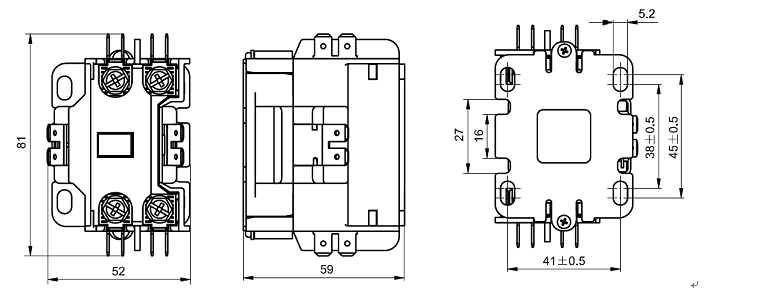

AC Contactor:

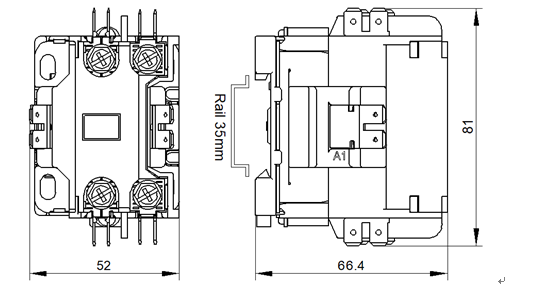

Rail Mounting Contactor:
Note: The unit is mm. The tolerance for mounting holes: ± 0.5; for other external dimensions: ± 1.5, unless otherwise specified.
