| Main | ||||
| Product Series | XMC0 | |||
| Product or Component Type | Definite Purpose Contactors | |||

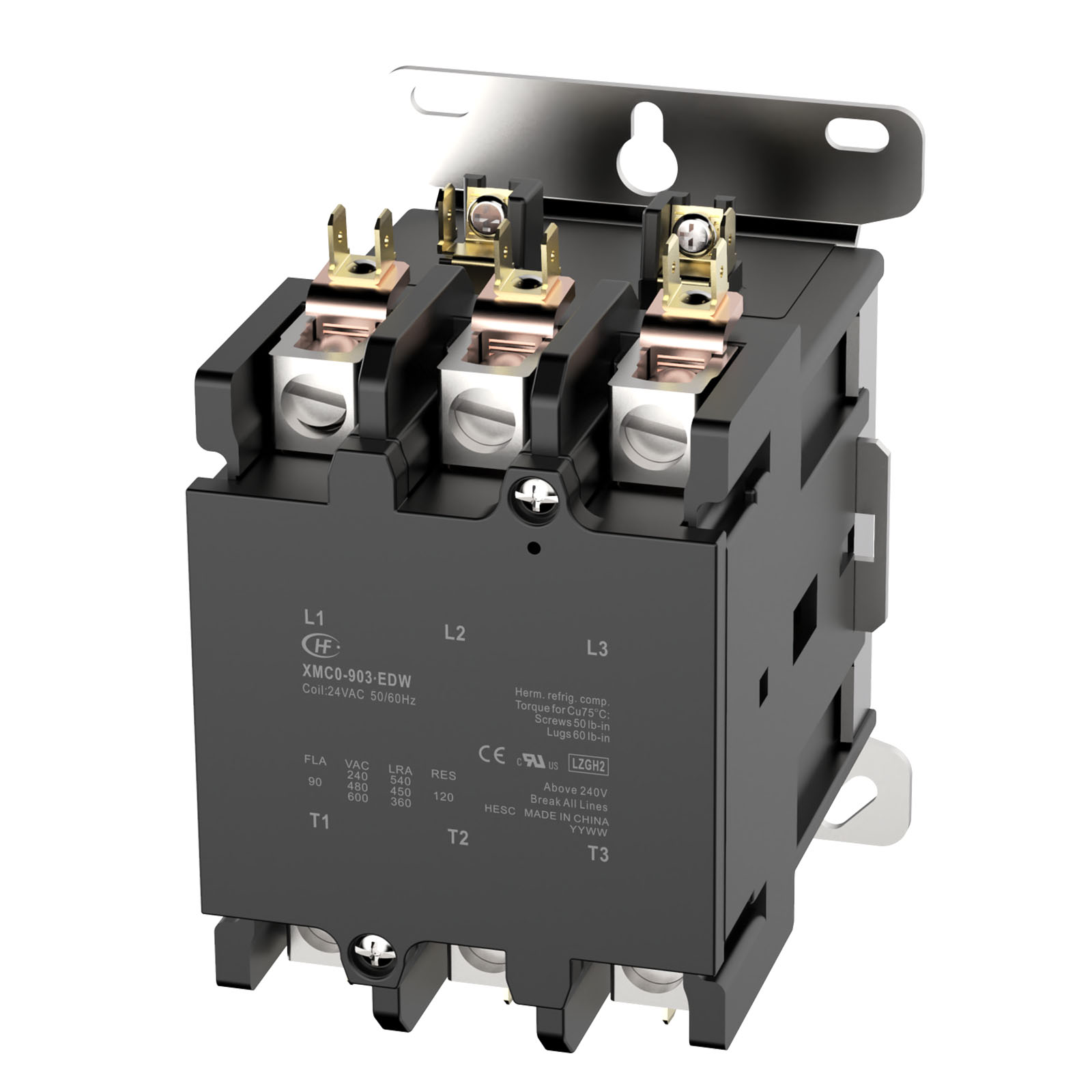

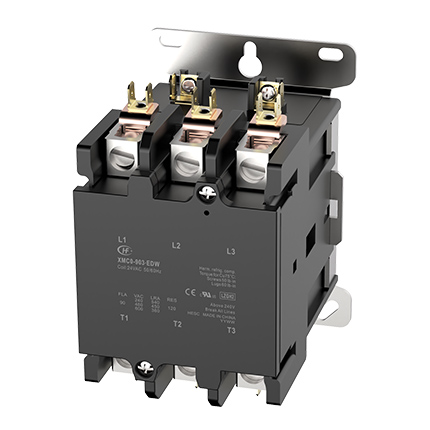

| Device Short Name | XMC0-903 | |||
| Contactor Application | HVAC, refrigeration, heating, data processing, welding, elevators, hoist & cranes, pool, commercial spa, and food service equipment industries, etc. | |||
| Poles Description | 3P | |||
| Rated Operational Voltage [Ue] | Power circuit: ≤ 600 V AC 50/60Hz | |||
| Full Load Ampere [FLA] | 90 A | |||
| Locked Rotor Ampere [LRA] | 540 A @ 240/277 V AC；450 A @ 480 V AC；360 A @ 600 V AC | |||
| Resistive Ampere [RES] | 120 A | |||
| Control Circuit Voltage [Us] | Code | Voltage | ||
| E | 24 V AC 50/60Hz | |||
| F | 110-120 V AC 50/60Hz | |||
| I | 208-220 V AC 50Hz 208-240 V AC 60Hz | |||
| L | 277 V AC 60Hz | |||
| N | 380-415 V AC 50Hz 440-480 V AC 60Hz | |||
| Main Contact Terminals | C type: Slotted & Hex head washer w/ quick connect | |||
| D type: Box Lug w/ quick connect | ||||
E type: Box lug w/ quick connect (Line side) Slotted & Hex head washer w/ quick connect (Load side) | ||||
F type: Slotted & Hex head washer w/ quick connect (Line side) Box lug w/ quick connect (Load side)
| ||||
| Coil Terminals |  |  | ||

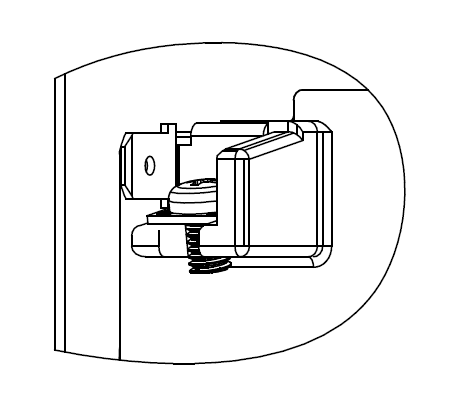

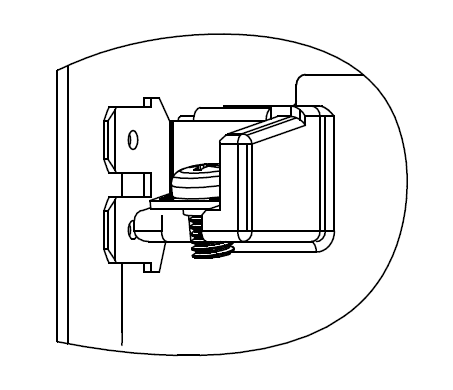

| Single QC w/ screw | Dual QC w/ screw | |||
| Complementary | ||||
| Maximum Horse Power Rating | 20 hp 240/277 V AC, 1phase 30 hp 240/277 V AC, 3phase 50 hp 480 V AC, 3phase 50 hp 600 V AC, 3phase | |||
| Pole Contact Composition | 3 NO | |||
| Pollution Degree | 3 | |||
Control Circuit Voltage Limits @ 25℃ (Cold state) | 0.8...1.1 Us: operational AC 50/60 Hz 0.2...0.75 Us: drop-out AC 50/60 Hz | |||
Nominal Inrushed VA @ 25℃ (Cold state) | E: 210 VA @ 24V 50 Hz, 190 VA @ 24V 60Hz | |||
| F: 255 VA @ 120V 50 Hz, 230 VA @ 120V 60Hz | ||||
| I: 230 VA @ 220V 50 Hz, 240 VA @ 240V 60Hz | ||||
| L: 210 VA @ 277V 60Hz | ||||
| N: 190 VA @ 415V 50 Hz, 220 VA @ 480V 60Hz | ||||
Nominal Sealed VA @ 25℃ (Cold state) | E: 30 VA @ 24V 50 Hz, 23.5 VA @ 24V 60Hz | |||
| F: 38.5 VA @ 120V 50 Hz, 30.5 VA @ 120V 60Hz | ||||
| I: 32 VA @ 220V 50 Hz, 32 VA @ 240V 60Hz | ||||
| L: 25 VA @ 277V 60Hz | ||||
| N: 26 VA @ 415V 50 Hz, 29 VA @ 480V 60Hz | ||||
| Maximum Operating Rate | Electrical: 360 cycs/h Mechanical: 3600 cycs/h | |||
| Tightening Torque | Power circuit: 50 lb-in - on screw terminals Power circuit: 60 lb-in - on box lug terminals Control circuit: 12 lb-in | |||
| Auxiliary Contact Composition | W/o built-in auxiliary contacts. Additional auxiliary contact modules can be installed if needed. | |||
| Mounting Support | Screw | |||
| A2L Application | Suffix w/ “W” : Flame Arrest-protected Components for Use in Refrigeration and Air-conditioning Equipment Employing A2L Refrigerants. | |||
| Minimum Switching Load | 110 V AC, 1A | |||
| Environment | ||||
| Standards | UL 60947-4-1, GB/T 14048.4 | |||
| Product Certifications | UL, CCC | |||
Permissible Ambient Air Temperature Around the Device | -40 °C…70 °C (-40 °F…158 °F) for normal operating -40 °C…70 °C (-40 °F…158 °F) for storage | |||
| Height | 128 mm | |||
| Width | 89 mm | |||
| Depth | 110 mm | |||
| Net Weight | 1.55 kg | |||
| Packing Units | ||||
| Unit Type of Package | 1 box | 1 carton | ||
| Number of Units in Package | 1 pcs | 6 pcs | ||
| Package Height | 11.8 cm | 17.1 cm | ||
| Package Width | 10 cm | 36 cm | ||
| Package Length | 15 cm | 37 cm | ||
| Package Weight | 1.7 kg | 10.2 kg | ||
| Offer Sustainability | ||||
| REACH Regulation | Conforming | |||
| EU RoHS Directive | Conforming | |||
| Mercury Free | Yes | |||
| China RoHS Regulation | Conforming | |||
| RoHS Exemption Information | Yes | |||
| Contractual Warranty | ||||
| Warranty | 18 months | |||

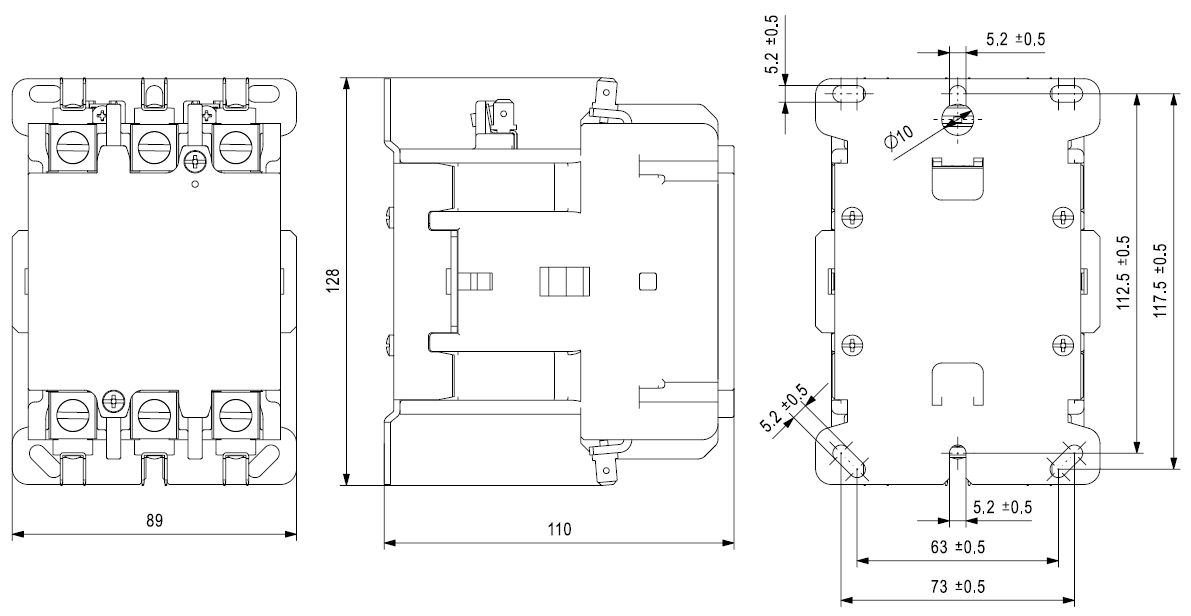

Dimensions
XMC0 3P 75-90A (3NO）
AC Contactor:
Note: The unit is mm. The tolerance for mounting holes: ± 0.5; for other external dimensions: ± 1.5, unless otherwise specified.
