| Main | ||
| Product Series | XMC0 | |
| Product or Component Type | Definite Purpose Contactors | |

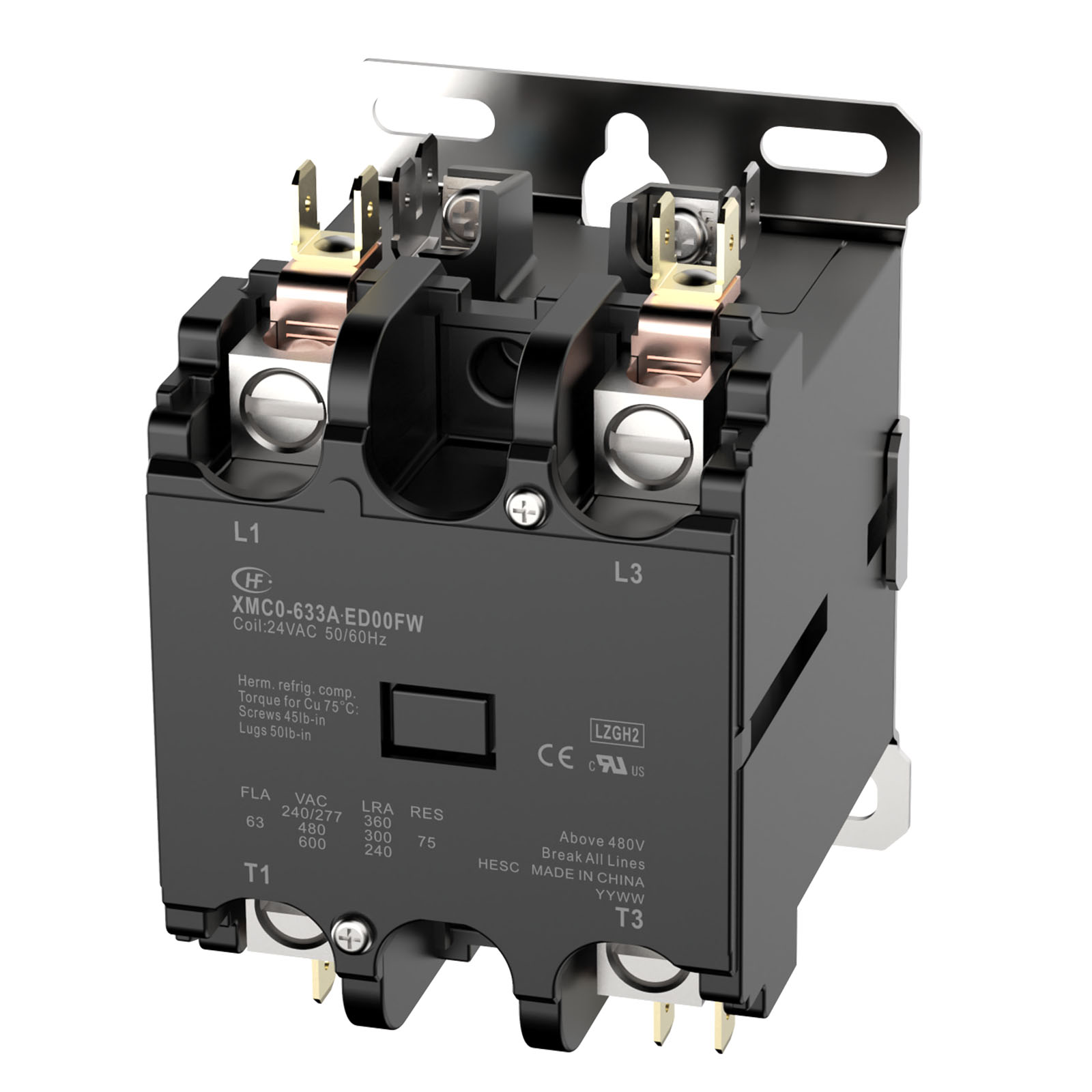

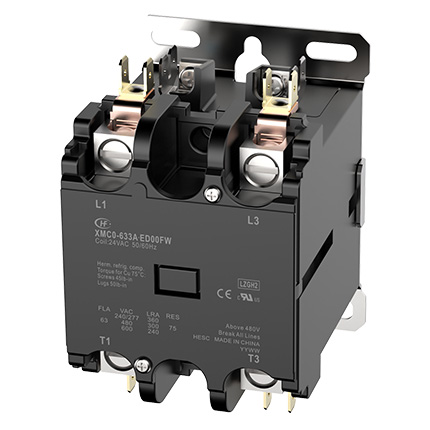

| Device Short Name | XMC0-633A | |
| Contactor Application | HVAC, refrigeration, heating, data processing, welding, elevators, hoist & cranes, pool, commercial spa, and food service equipment industries, etc. | |
| Poles Description | 2P (3P Frame) | |
| Rated Operational Voltage [Ue] | Power circuit ≤ 600 V AC 50/60Hz | |
| Full Load Ampere [FLA] | 63 A | |
| Locked Rotor Ampere [LRA] | 360 A @ 240/277 V AC；300 A @ 480 V AC；240+ A @ 600 V AC | |
| Resistive Ampere [RES] | 75 A | |
Control Circuit Voltage [Us]
| Code Voltage | |
| E 24 V AC 50/60Hz | ||
| F 110-120 V AC 50/60Hz | ||
| I 208-220 V AC 50Hz 208-240 V AC 60Hz | ||
| L 277 V AC 60Hz | ||
| N 380-415 V AC 50Hz 440-480 V AC 60Hz | ||

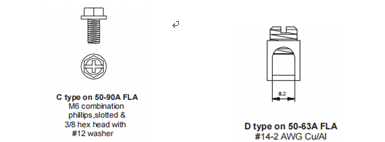

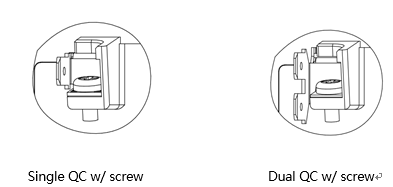

| Main Contact Terminals | C type: Slotted & Hex head washer w/ quick connect D type:Box Lug w/ quick connect | |
| E type: Box lug w/ quick connect (Line side) Slotted & Hex head washer w/ quick connect (Load side) F type: Slotted & Hex head washer w/ quick connect (Line side) Box lug w/ quick connect (Load side)
| |
| Coil Terminals |  | |
| Complementary | ||
| Maximum Horse Power Rating | 10 hp 240/277 V AC, 1phase | |
| Pole Contact Composition | 2 NO | |
| Pollution Degree | 3 | |
Control Circuit Voltage Limits @ 25℃ (Cold state) | 0.8...1.1 Us: operational AC 50/60 Hz 0.2...0.75 Us: drop-out AC 50/60 Hz | |
Nominal Inrushed VA @ 25℃ (Cold state) | E：100 VA @ 24V 50 Hz, 90 VA @ 24V 60Hz F：100 VA @ 120V 50 Hz, 90 VA @ 120V 60Hz I：90 VA @ 220V 50 Hz, 100 VA @ 240V 60Hz L：90 VA @ 277V 60Hz N：85 VA @ 415V 50 Hz, 100 VA @ 480V 60Hz | |
Nominal Sealed VA @ 25℃ (Cold state) | E：16.5 VA @ 24V 50 Hz, 12.5 VA @ 24V 60Hz F：17 VA @ 120V 50 Hz, 13 VA @ 120V 60Hz I：15 VA @ 220V 50 Hz, 15 VA @ 240V 60Hz L：14 VA @ 277V 60Hz N：16.5 VA @ 415V 50 Hz, 18.5 VA @ 480V 60Hz | |
| Maximum Operating Rate | Electrical: 360 cycs/h Mechanical: 3600 cycs/h | |
| Tightening Torque | Power circuit: 45 lb-in - on screw terminals Power circuit: 50 lb-in- on box lug terminals Control circuit: 12 lb-in | |
| Auxiliary Contact Composition | W/o built-in auxiliary contacts. Additional auxiliary contact modules can be installed if needed. | |
| Mounting Support | Screw | |
| A2L Application | Suffix w/ “W” : Flame Arrest-protected Components for Use in Refrigeration and Air-conditioning Equipment Employing A2L Refrigerants. | |
| Minimum Switching Load | 110 VAC, 1A | |
| Environment | ||
| Standards | UL 60947-4-1,GB/T 14048.4 | |
| Product Certifications | UL ,CCC | |
Permissible Ambient Air Temperature Around the Device | -40 °C…70 °C (-40 °F…158 °F) for normal operating -40 °C…70 °C (-40 °F…158 °F) for storage | |
| Height | 102.6 mm | |
| Width | 70 mm | |
| Depth | 80 mm | |
| Net Weight | 0.625 kg | |
| Packing Units | ||
| Unit Type of Package | 1box 1 carton | |
| Number of Units in Package | 1pcs 30pcs | |
| Package Height | 85mm 225mm | |
| Package Width | 80mm 372mm | |
| Package Length | 110mm 462mm | |
| Package Weight | 0.66kg 19.75kg | |
| Offer Sustainability | ||
| REACH Regulation | Conforming | |
| EU RoHS Directive | Conforming | |
| Mercury Free | Yes | |
| China RoHS Regulation | Conforming | |
| RoHS Exemption Information | Yes | |
| Contractual Warranty | ||
| Warranty | 18 months | |
Dimensions

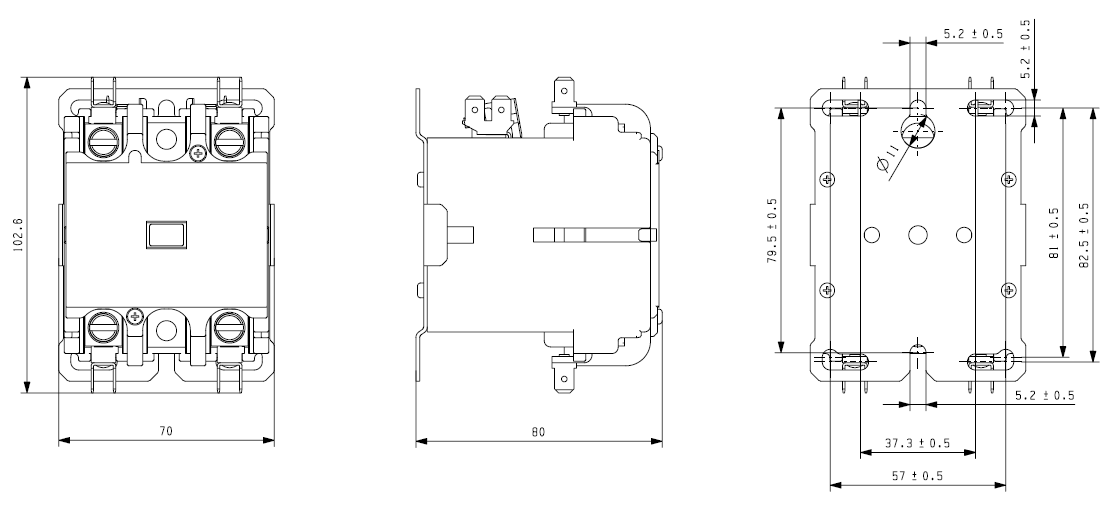

XMC0 2P (3P Frame) 50-63A（2NO）
AC Contactor:
Note: The unit is mm. The tolerance for mounting holes: ± 0.5; for other external dimensions: ± 1.5, unless otherwise specified.
