UEZ3-63

Scroll image to enlarge

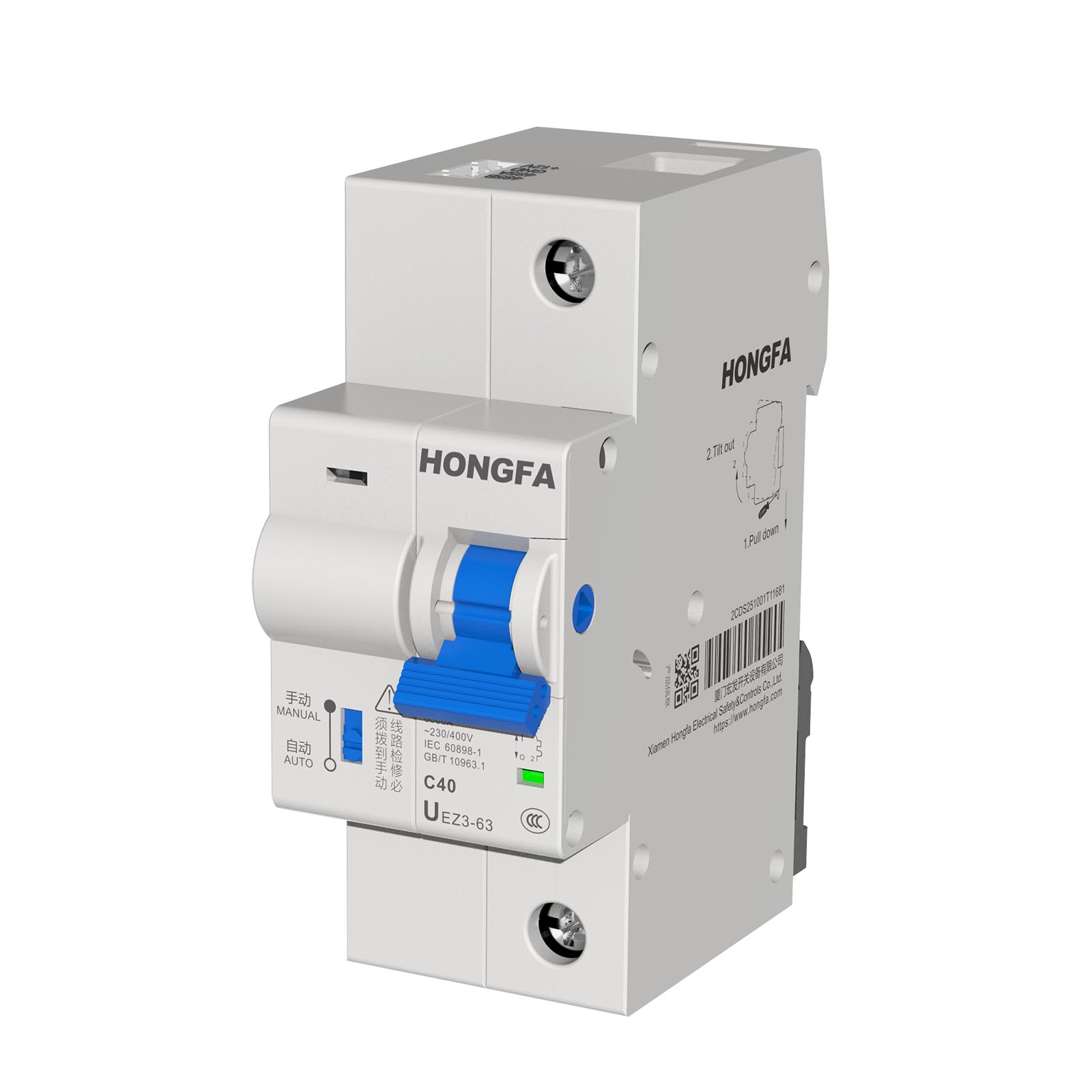

UEZ3-63

Smart MCB

UEZ3 series
Inquiry

We are here to help! Contact us if you have an inquiry or question.

Certificates:

Main Documentation

Product Data Sheet.pdf
UEZ3-6A…63A smart MCB Product Catalogue.pd
Product Catalogue.pdf
UEZ3 series intelligent miniature circuit breaker software manual - English version.pdf
Z3GW Intelligent Gateway Software Manual.pdf
UEZ3 Installation and Operation Instruction Manual.pdf
3D Model.rar

The Product is Compatible With

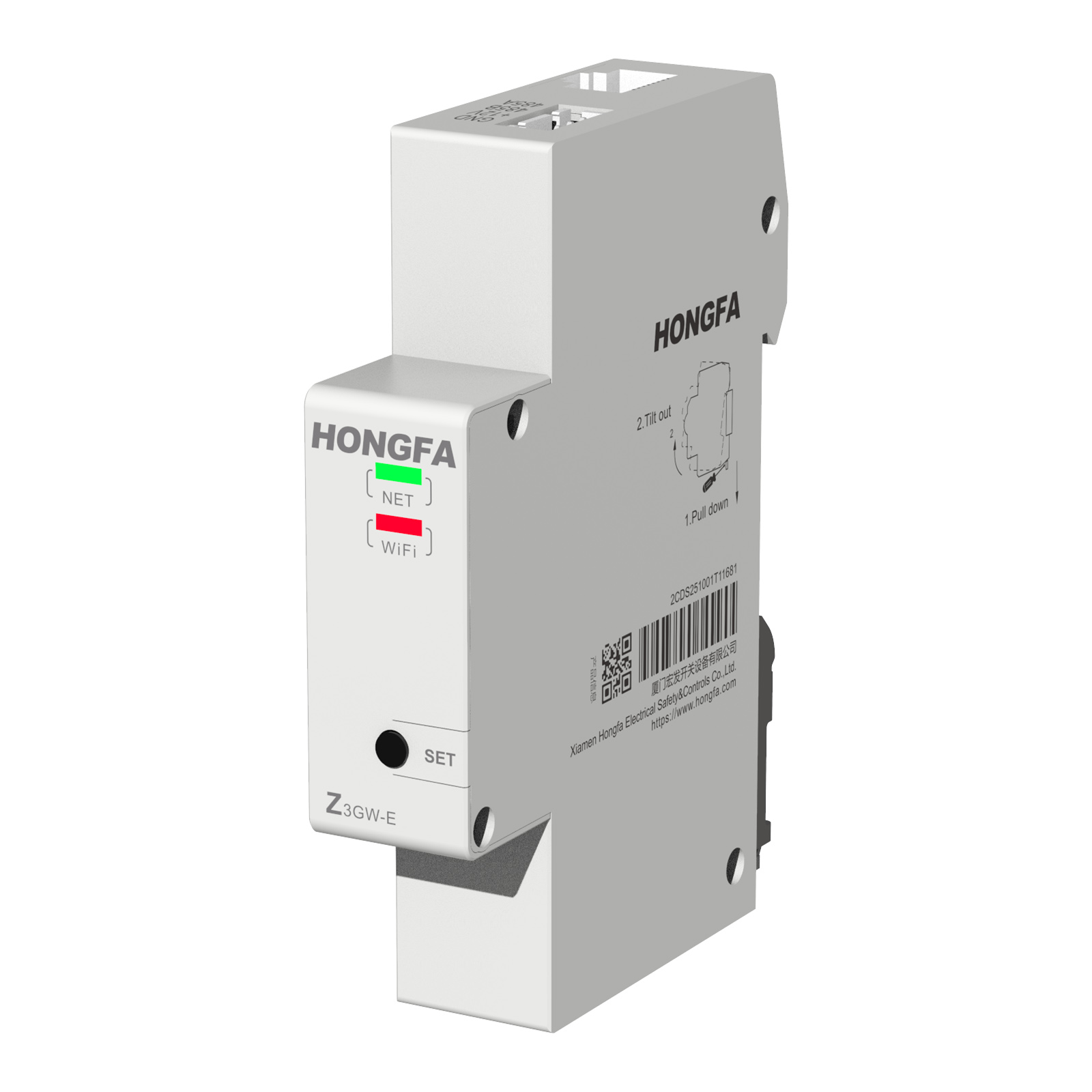

Z3GW Gateway

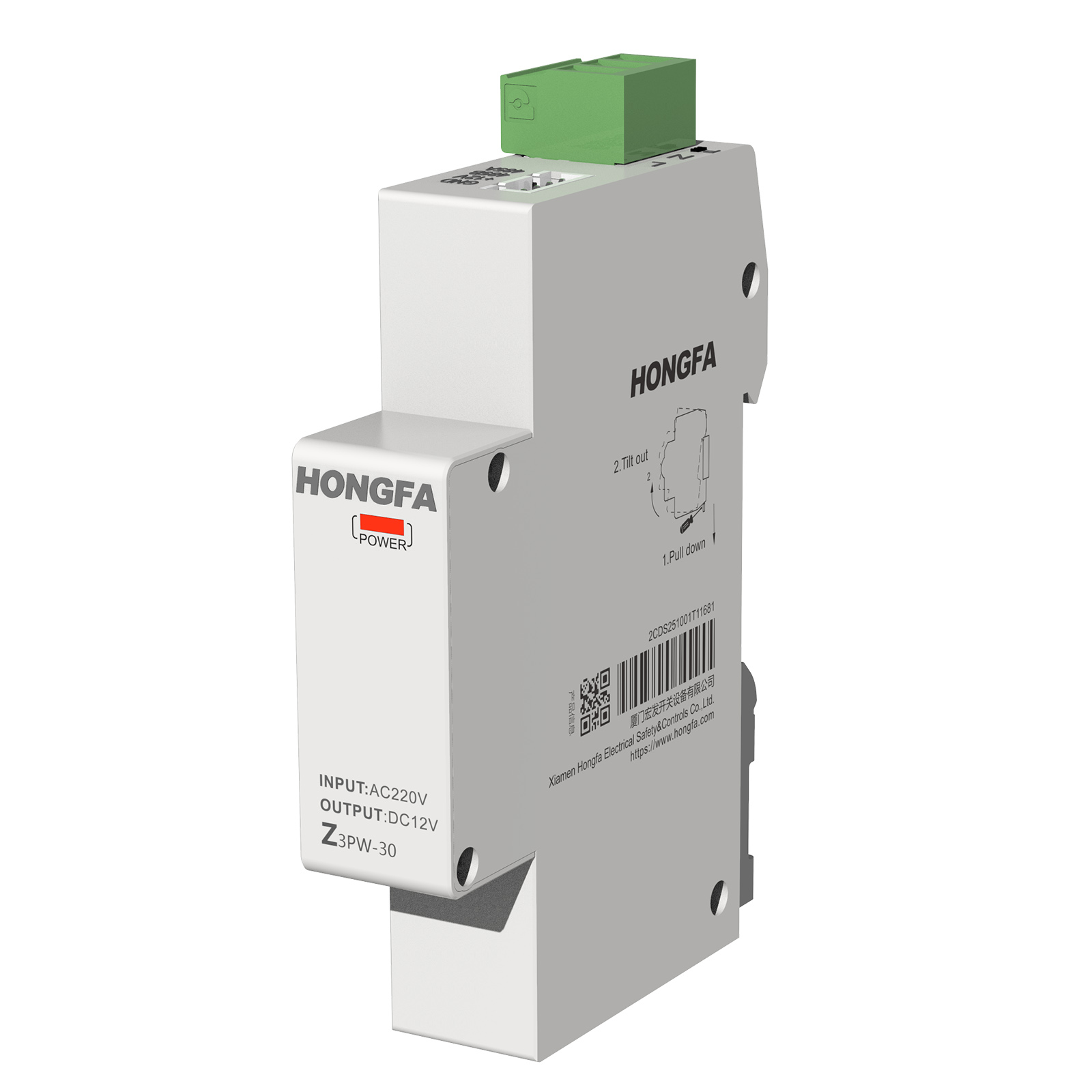

Z3PW Power
Z3CL Communication wire

Product Characteristics

Multi-function： Overload protection, short-circuit protection, remote control, electric parameter measurement, over & under voltage auto reclosing, fault analysis, fault alarm, RS485 communication multiple functions.
Miniaturization： The high combination of mechanical release, contact system, arc extinguishing device, DC motor, reduction mechanism, sensor and electronic components makes the product compact in structure and simple in appearance.
High safety： Overload, overvoltage, under voltage, over power, over temperature and other protection can be provided; short circuit protection adopts mechanical protection, with fast operation and high breaking capacity.
Intelligentization： Edge computing strategy, circuit important protection local processing execution; remote multi-category information collection, multi-program control, to meet the needs of the Internet of Things.
High reliability： the operation mechanism adopts efficient and reliable DC motor to provide stable power for breaking and closing, and the positioning system adopts high precision detection switch for accurate positioning and strong anti-interference ability;PCB board adopts anti-interference design to meet EMC requirements.
Easy installation： Adopt modular design, can be installed on standard 35mm rail; control power and RS485 communication using plug in connection, and a variety of communication wire accessories are optional.

Technical Parameters

Main
RangeUEZ3
Product NameSmart miniature circuit-breaker
Product or Component TypeCircuit-breaker
Product ModelUEZ3-63
Poles Description

Poles

Range

1P1P+N3P3P+N
M√√√√
C√√√√
R-P √ √
Y-P √ √
C10-P √ √



Product ApplicationPower distribution protection
Rated Current [In] 6A…63A
Network TypeAC
Trip Unit Technology

M: electromagnetic and electronic

C: thermo-magnetic

R-P: thermo-magnetic

Y-P: thermo-magnetic

C10-P: thermo-magnetic

Curve CodeC/D
Breaking CapacityIcs=Icn=6kA
Function

structure

function

MCR-PY-PC10-P
Power SupplyExternal power supplyDC12VDC12V
built-in power supply  √√√
Protection Function Short-circuit protection√√√√√√
Overload protection√√√√√
Overload setting current protection√
Overvoltage and undervoltage auto reclosing  √√√√√√√
Local reclosing function√(default off) √ √
Control FunctionsRemote control function√√  √
Dry contact control    √
Metering functionCurrent metering√
Voltage measurement (power, electricity)√
Alarm, fault analysis, fault record√
Timing√
Cost control function√
Communication functionRS485√√  √
Life monitoring√



Complementary
Network Frequency50Hz
Rated Operational Voltage [Ue]

1P: 230/400 V AC 50Hz

1P+N: 230 V AC 50Hz

3P/3P+N: 400 V AC 50Hz

Magnetic Tripping LimitC: 5…10 x In, D: 10…20 x In
Rated Insulation Voltage  [Ui] 500 V
Rated Impulse Withstand Voltage [Uimp]4kV
Contact Position IndicatorYes
Mounting SupportDIN rail
Height71mm
Width

1P: 35.6mm

1P+N: 53.2mm

3P: 70.8mm

3P+N: 88.4mm

Depth90mm
Net Weight

1P: 192 g

1P+N: 265 g

3P: 455 g

3P+N: 532 g

Mechanical Durability10000 cycles
Electrical Durability6000 cycles (power factor 0.85…0.9)
Connections - TerminalsTop connection 1.0 mm²…35 mm²
Wire Stripping Length 15 mm
Tightening Torque3.5 N.m
Environment
Standards

GB/T10963.1

IEC 61543

IEC 60898-1

Product CertificationCCC, CQC, CE, CB, UKCA
IP Degree of ProtectionIP20
Pollution Degree2
EMC Degree3
Relative HumidityAnnual average: <75%, 30 days (these days are naturally distributed throughout the year): 95%; Accidental appearance on other days: 85%
Ambient Air Temperature for Operation-25…70 °C (monthly average temperature≤35℃)
Ambient Air Temperature for Storage-40…80 °C
Working AltitudeNot exceeding 2000m
Packaging Unit
 1P1P+N3P3P+N
Unit Type of Package 1BB1BB1BB1BB1
Number of Units in Package 16432
Package Height 18.2cm8.2cm8.2cm8.2cm
Package Width 110.0cm10.0cm10.0cm10.0cm
Package Length 122.0cm22.0cm22.0cm22.0cm
Package Weight 11.2kg1.2kg1.5kg1.2kg
Unit Type of Package 2BARBARBARBAR
Number of Units in Package 272483624
Package Height 224.8cm24.8cm24.8cm24.8cm
Package Width 222.3cm22.3cm22.3cm22.3cm
Package Length 240.5cm40.5cm40.5cm40.5cm
Package Weight 215.5kg14.6kg18.1kg14.6kg
Offer Sustainability
EU RoHS DirectiveCompliant EU RoHS Declaration
Mercury FreeYes
China RoHS RegulationYes
Products Outside the Scope of ROHS Control in ChinaYes
RoHS Exemption InformationYes
Contractual Warranty
Warranty18 months
Products of the same type

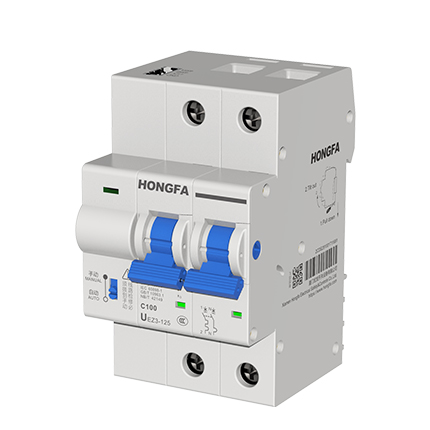

UEZ3-125

Smart MCB

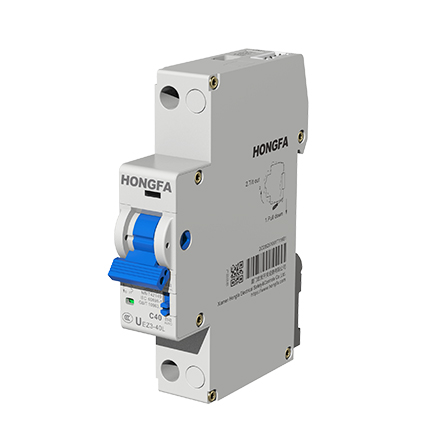

UEZ3-40

Smart MCB

UEZ3-63

Smart MCB

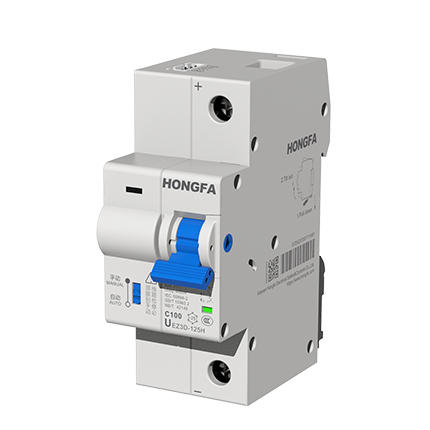

UEZ3D-125

Smart MCB

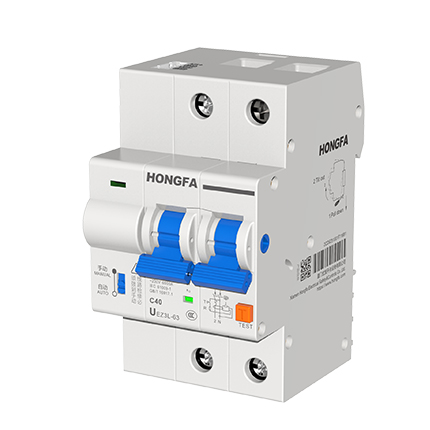

UEZ3L-63
